Bluetooth 5.0 Nano USB Adapter

BT-8500

•Bluetooth 5.0 + EDR : Max speed up to 3Mbps
•Single-chip Bluetooth 5 controller, combines a BT Protocol Stack
(LM, LL, L2CAP, GATT, RFCOMM, SPP, and LE), BT Baseband, modem, and BT RF in a single chip
•Supports dual mode (BR/EDR + LE Controllers), compatible with previous versions, including v2.1 + LE
•Supports Bluetooth Low Energy (BLE) - multiple Low Energy states
•Supports Bluetooth classic (BDR/EDR)
•Supports Windows 8.1/10/11, Linux: kernel 2.6.32~5.3 (support Fedora & Ubuntu only)


Nano Size | World’s Smallest

No matter if you are adding Bluetooth 5 to your desktop or laptop, you can expect to plug and forget, thanks to its ultra-small nano-sized housing.


Bluetooth 5.0 | The Latest Performance Standard

Speed, distance and connectivity set the new Bluetooth 5.0 apart from the older generation. Gain faster transfer speeds of up to 3 times (3Mbps with Enhanced Data Rate) and extended distance of up to 4 times that of Bluetooth 4.0 (40 Meters Indoor).

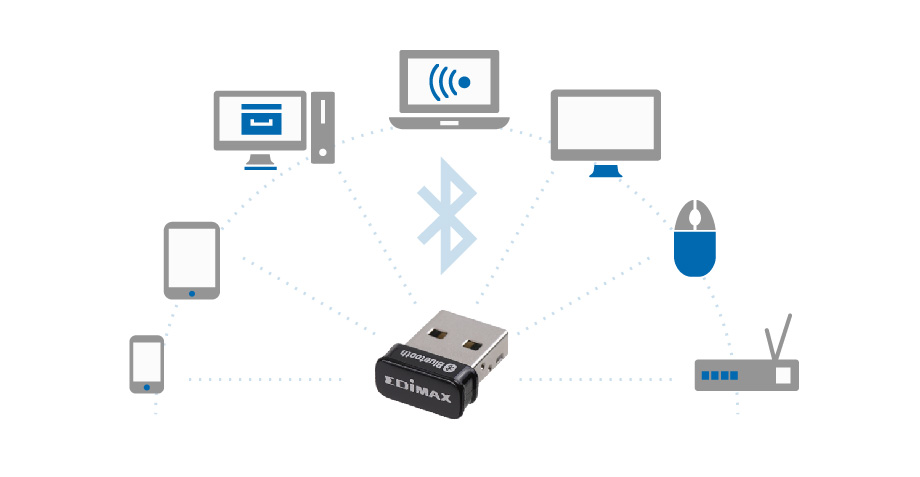

Make it Wireless | Connect Your Devices

There are a lot of products with Bluetooth built-in, yet you can’t fully utilize those products because your machine does not have Bluetooth connectivity. You can now connect Bluetooth enabled devices such as controllers, headphones, speakers, keyboards and mouse, printers, smartphones, tablets and more.

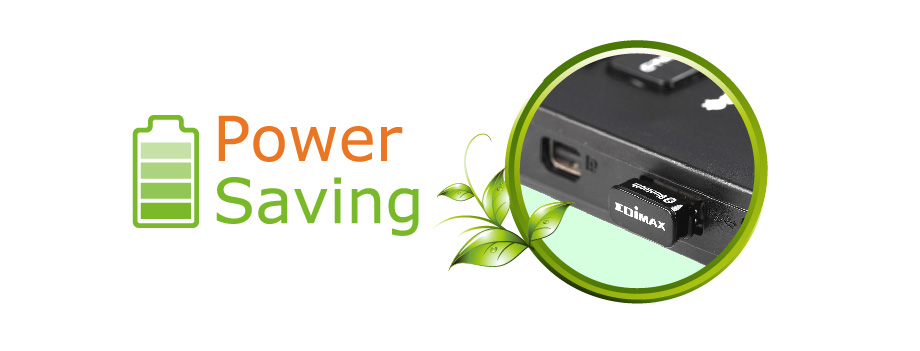

Keeping the Energy Consumption Low

Supports Bluetooth Low Energy (BLE), meaning that your devices are connected with optimal energy consumption.

Dual Audio Sharing

Share your music with another pair of Bluetooth headphones/earphones/speakers without a drop in performance.



SPECIFICATIONS

HARDWARE
Interface
•1 x USB 2.0 Type A
Antenna
•Internal PiFa Antennas x 1
Dimensions
•7.1 (H) x 14.9 (W) x 17.4 (D) mm
Weight
2g
BLUETOOTH
Standards
•Bluetooth 5 specification compliant
Frequency Band
•2402~2480MHz
Maximum Data Speed
•3Mbps (class BT-BR/EDR) : 2Mbps(BLE)
Output Power
•8dB (max.)
Receiver Sensitivity
94dBm (2Mbps EDR)
87dBm (3Mbps EDR)
98dBm (BLE)
06dBm (125K BLE long range)
OTHERS
Certification
•CE, FCC, NCC, BSMI, BQB, IC
Environmental
Condition
•Operating Temperature: 32~104°F (0~40°C)
•Storage Temperature: -4~140°F (-20~60°C)
•Operating Humidity: 10~90% (NonCondensing)
•Storage Humidity: Max. 95% (NonCondensing)
System Requirement
•Windows 8.1/10/11  (32bit/64bit)
•Linux: kernel 2.6.32~5.3 (support Fedora & Ubuntu only)
 *Additional version information will be announced on the Edimax website.
Package Content
•Bluetooth 5.0 USB Adapter
•Quick Installation Guide


*Must be in well ventilated semi-outdoor spaces such as eaves of a house, verandah, balcony, porch, covered patios, etc..
*Must not be installed in locations that are subject to extreme weather conditions such as typhoon, heavy rain or dust storm; or it must be sheltered from the conditions.
*Must not be installed in locations that are subject to extremes of humidity or temperature such as near fire or other heat sources.
*Must not be installed in locations directly exposed to sunlight or reflected light source.




*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
