Wireless 802.11b/g USB Adapter

EW-7316Ug

(End-of-Life Product)

  • Works with both IEEE 802.11b and IEEE 802.11g products.
  • High-speed data transfer rate - up to 54Mbps.
  • High throughput supports multi-media data bandwidth requirement.
  • Supports 64/128-bit WEP , WPA/WPA2 (TKIP with IEEE 802.1x) and AES data encryption.
  • Automatic fallback increases data security and reliability.
Share


EW-7316Ug is a compact size wireless 802.11b/g USB adapter which provides a simple and easy way to add or upgrade wireless connectivity to your desktop or notebook computer. This wireless 802.11b/g USB Adapter supports high data rate up to 54Mpbs. You can just plug it into your computer's USB port and enjoy the high-speed wireless network access.

Compatible with wireless 11b/g data rate up to 54Mbps
EW-7316Ug is complied with wireless 802.11b/g standards which is fully compatible with any wireless 802.11b/g device. Incorporating USB2.0 and wireless 802.11b/g, the transmission data rate is up to 54Mbps which enables the smooth files transfer and Internet surfing.

Supports 64/128-bit WEP, WPA & WPA2 encryption protects wireless communication
This adapter supports 64/128-bit WEP data encryption to protect your wireless network from eavesdropping. It also supports WPA or WPA2 robust encryption to prevent your network intruded.

Plug & Play easy installation
The installation cannot be easier. Simply plug the adapter into any available USB port, the CD-ROM will help you the setup of wireless connection.

Portable and compact design
The compact design of EW-7316Ug is convenient to carry for all mobile users.

Share


HARDWARE INTERFACE
STANDARD

FREQUENCY BAND
  • USB2.0 Interface
  • Internal Printing Antenna
  • IEEE802.11b, IEEE802.11g
  • 2.4000~2.4835GHz (Industrial
    Scientific Medical Band)

DATA RATE
MODULATION
LED
  • 11b: 1/2/5.5/11Mbps
  • 11g: 6/9/12/24/36/48/54Mbps
  • auto fallback
  • 11g : OFDM with BPSK, QPSK, 16QAM, 64QAM
  • 11b : BPSK, QPSK, CCK
  • Link / Active
  • TX/RX
SECURITY
DIMENSION
HUMIDITY & TEMPERATURE
  • WEP 64/128, WPA, WPA2, AES
  • 9(H) x 27(W) x 87(D) mm
  • Max. 95% (Non Condensing)
  • 32~131°F (0 ~55°C)
SYSTEM REQUIREMENTS
OUTPUT POWER
CERTIFICATIONS
  • Windows 　98/ME/2000/XP/2003/Vista
  • Mac 10.3.x / 10.4.x
  • Linux Kernel 2.4 / 2.6
  • 11g: 15±1dBm
  • 11b: 17±1dBm
  • CE, FCC

NETWORK SETUP DIAGRAM AND RELATED PRODUCTS

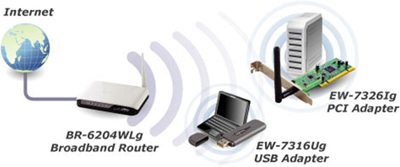

An example of how the EW-7316ug can be setup:
•Connect the EW-7316Ug wireless adapter to your computer.
• Connect to wireless 802.11b/g access point or broadband router.
