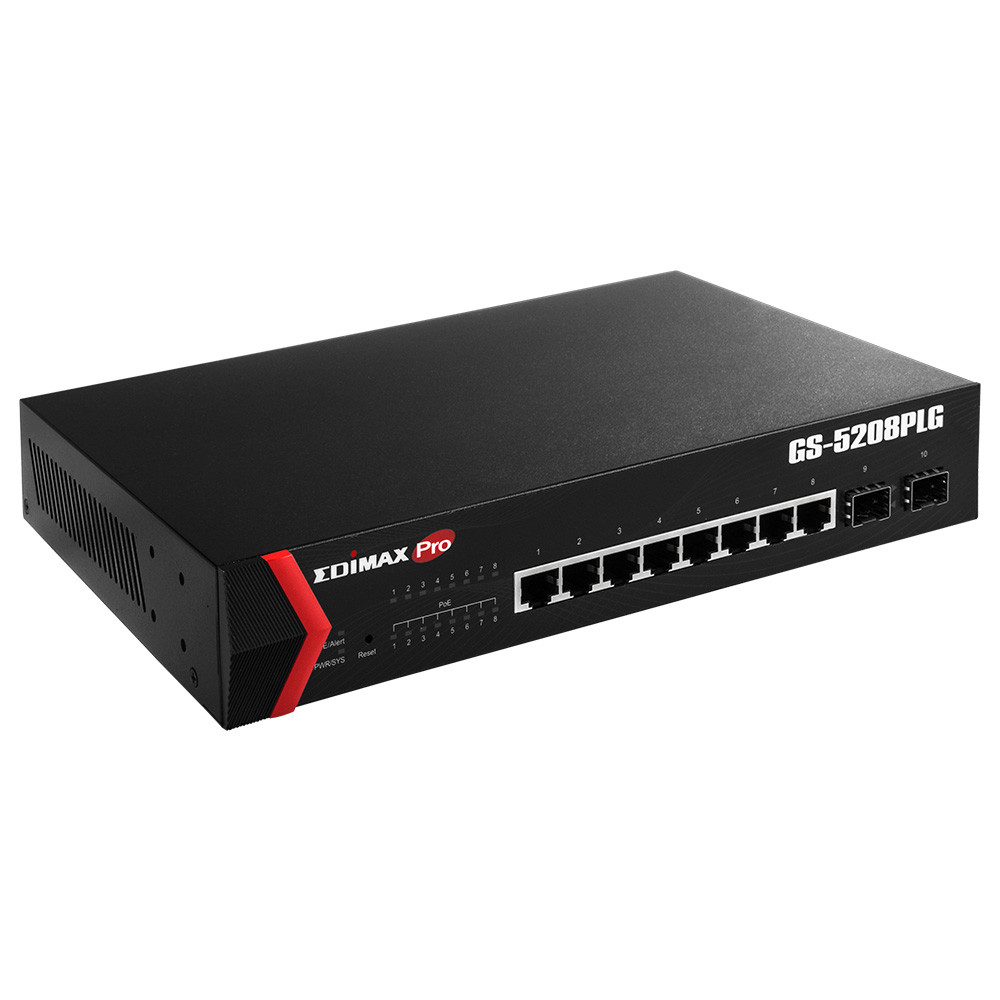

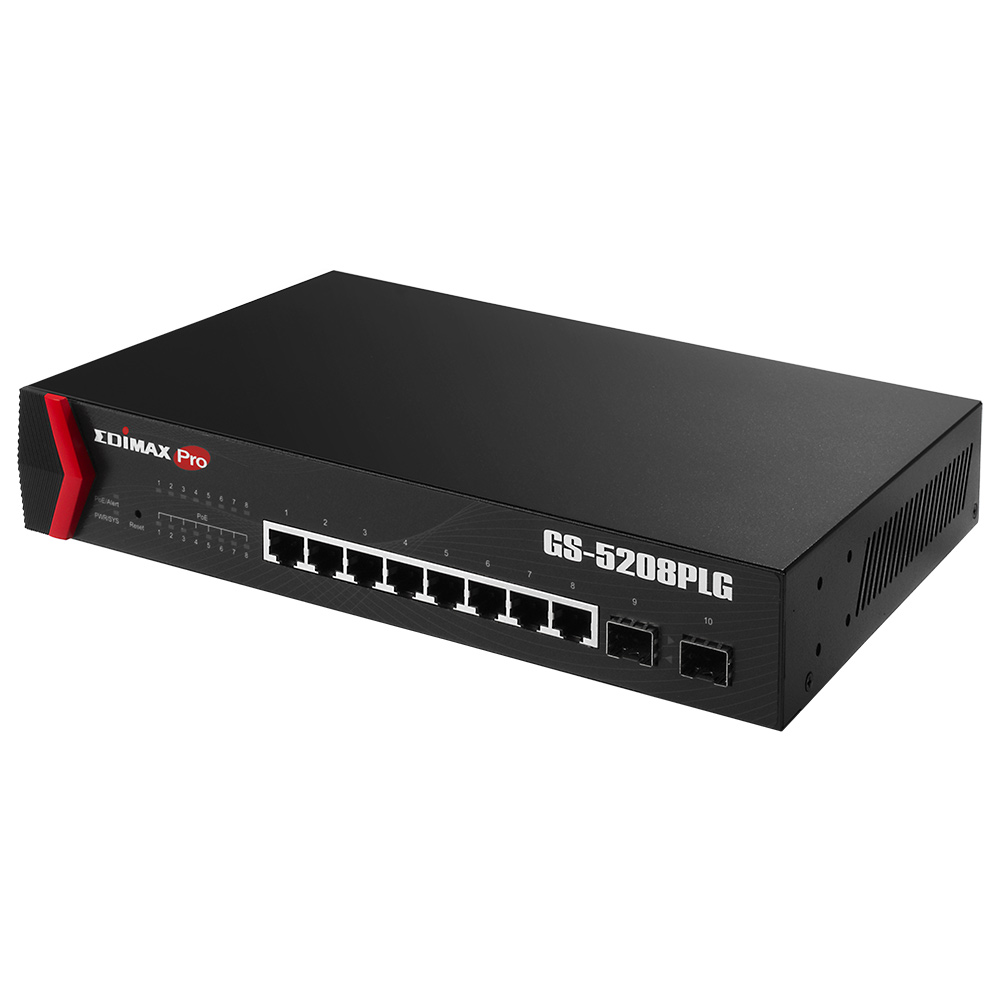

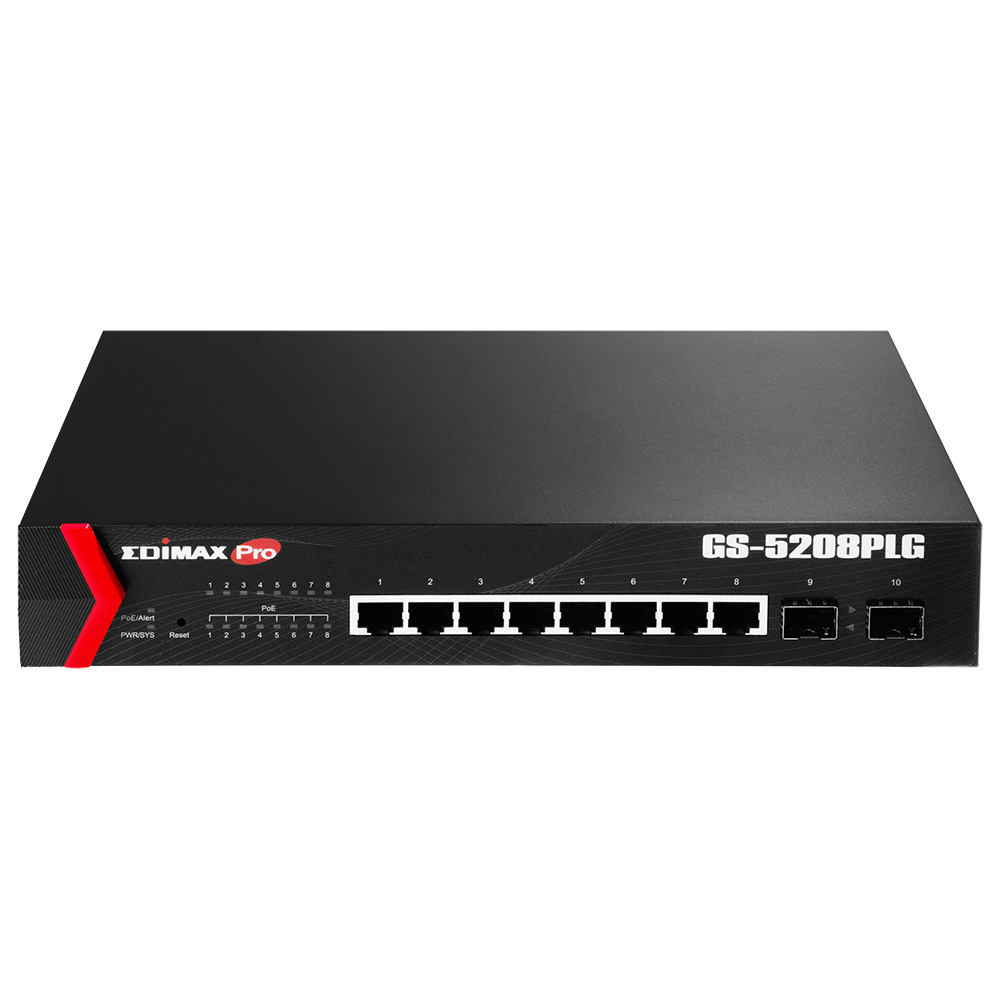

8-Port Gigabit PoE+ with 2 SFP Slots Web Smart Switch

GS-5208PLG

  • IEEE 802.3af/at PoE compliant.
  • Eight Gigabit Ethernet ports.
  • Up to 30W per port (total power budget: 160W) for powering PoE-enabled devices.
  • Auto-detection of powered devices (PD) and power consumption levels.
  • Auto fault-detection on over/under current & voltage.
  • Access Control List (ACL) support.
  • Switch capacity:20Gbps & Forwarding rate:14.88Mpps.
  • IEEE 802.1Q-based VLAN for network segmentation to improve performance and security.
  • IEEE 802.1p QoS with 4 priority queues
  • IGMP Snooping V1 / V2 / V3 support.
  • 4K MAC address table and jumbo frame support up to 9KB.
  • 19-inch 1U rack-mount brackets included.


The Edimax Pro GS-5208PLG is a web-smart switch with 8 Gigabit PoE+ and 2 Gigabit SFP slots. Designed for medium to small network environments, its standard 19-inch 1U rack-mount brackets allow for integration with the most widely used mounting systems on the market. The Edimax GS-5208PLG is a superb choice to boost your network environment’s performance and efficiency.

IEEE 802.3at/af Power over Ethernet Standard
The GS-5208PLG features 8 IEEE 802.3at Power over Ethernet (PoE+) ports which supply up to 30W of electricity per port, and has a total power supply of 160 W to power any 802.3at or 802.3af compliant power device. With PoE detection capability, the GS-5208PLG is able to verify whether the connected device is IEEE 802.3at or 802.3af compliant. In the event that a PoE device is not detected, only network data will be transmitted through the LAN cable. The GS-5208PLG can be used with different PoE products such as access points, network cameras or VoIP devices and is an effective solution for network environments where power outlets are difficult to access.

PoE for Easy Installation and Better Cost Efficiency
Power over Ethernet technology enables the Ethernet cable to carry both data and power, reducing cable installation and eliminating the need for extension cords or electrical outlets on the walls and ceiling. Overall the GS-5208PLG can lower installation costs and simplify the deployment effort.

Power-Budget User Interface for PoE Device Management
The GS-5208PLG features an innovative power-budget UI (user interface) which allows IT managers to monitor the power consumption of each PoE port and the total power consumption of connected PoE devices. Monitor the entire PoE network and assess the total power usage before adding new PoE devices to the network architecture. The power-budget UI also features a remote on/off function for each PoE port, so manual plug/unplug isn’t necessary when a PoE device hangs. Simply use the remote power button to quickly reset the device.

Smart Tools for Improved Network Efficiency
The GS-5208PLG features smart network monitoring tools that allow for improved network efficiency. Security and management features include bandwidth control and VLAN (IEEE 802.1Q VLAN). Using its web-based interface, administrators can set up VLANs to segregate traffic and configure link aggregation settings to create fat traffic pipelines. Additionally, these features offer extra protection on the network edge and the password-protected configuration interface can be accessed remotely.

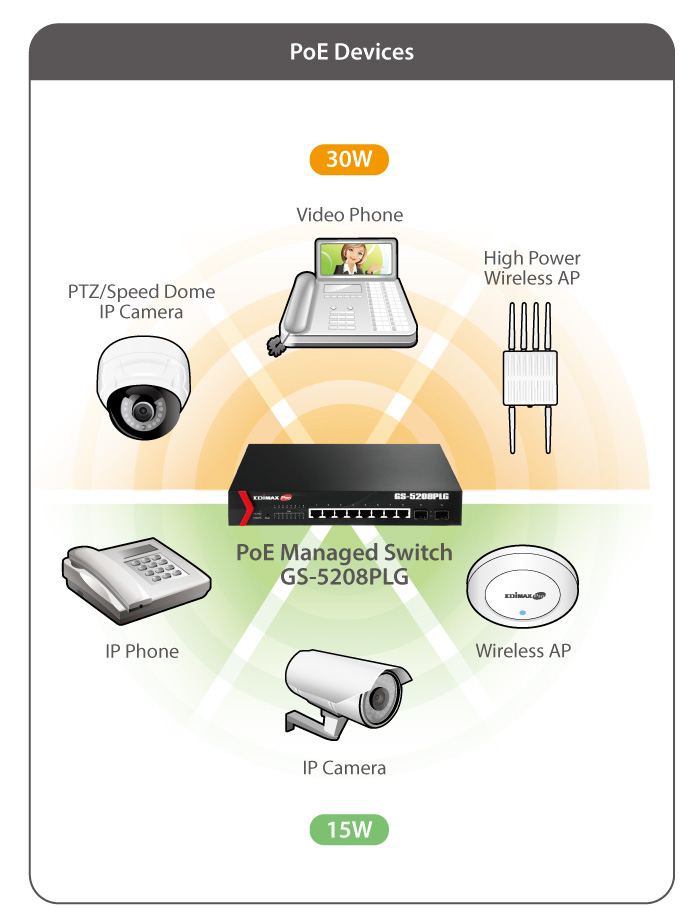

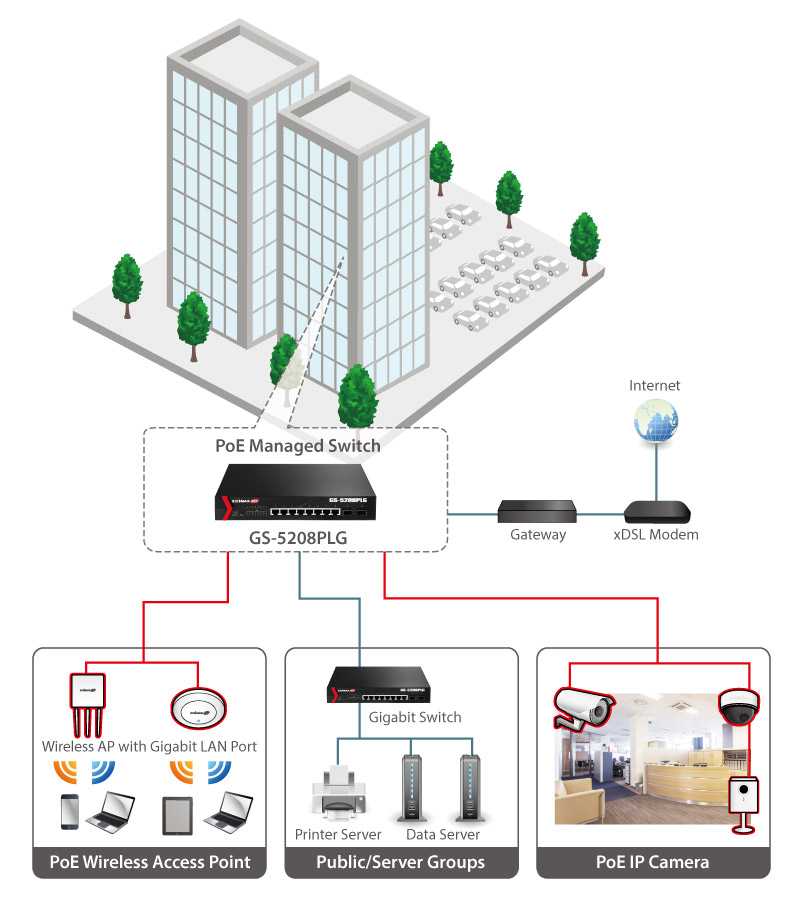

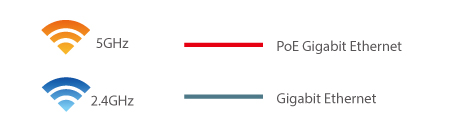

APPLICATION DIAGRAM




SPECIFICATIONS

HARDWARE
Ports 8 Port RJ-45 10/100/1000Base-T PoE+ Ports
2 Port 1000Base-X SFP slots
Transmission Method Store and forward
Buttons Reset button
LED Indicators Per Port: Link/Act
PoE: Act/Status
Per Unit: Power
Power Input 100-240V AC, 50-60 Hz, internal power supply
Total Power Budget 160W
Dimensions (L x W x H) 265 × 184 × 44 mm
Weight 1.7kg
PERFORMANCE
Switching Capacity 20Gbps
Forwarding Rate 14.88Mpps
MAC Address 4K
Buffer Memory 192KB
Jumbo Frames 9.2KB
Filtering/Forwarding Rates 1000Mbps port – 1,488,000pps
100Mbps port - 148,800pps
10Mbps port - 14,880pps
POWER OVER ETHERNET
Standard IEEE 802.3af, IEEE 802.3at
Power Output Up to 30W per port
Pin Assignment 1/2(+), 3/6(-) End-Span (mode A)
Available Power Budget 130W, (Port 1 to 4 = 65W & Port 5 to 8 = 65W)
Management PoE ouput on/off management
SMART FEATURES
VLAN Up to 8 VLANs and 4096 VLAN IDs
802.1Q tag-based VLAN
Port Trunking IEEE 802.3ad LACP Trunk-Static trunk up to 1 trunk groups
IGMP Snooping IGMP v1/v2/v3 snooping
Block unknown multicast traffic
Multicast groups: 20
QoS Port-based QoS, IEEE802.1p QoS, 4 Priority Queues, scheduling algorithm
Management User Interface: Web-based management
User Account: Login account configuration
Firmware Upgrade: Firmware upgrade by WEB

Loop Detection/Prevention
Security Broadcast Storm control
ENVIRONMENT
Temperature Operating: 0 ~ 40℃
Storage: -40 ~ 70℃
Humidity (Non-condensing) Operating: 10 ~ 90%
Storage: 5 ~ 90%
STANDARDS COMPLIANCE
Standards
IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100BaseTX Fast Ethernet
IEEE 802.3ab 1000BaseT Gigabit Ethernet
IEEE 802.3x Full-duplex and Flow Control
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.1Q VLAN
IEEE 802.1p Quality of Service (QoS)
IEEE 802.3af Power Over Ethernet (PoE)
IEEE 802.3at Power Over Ethernet Plus (PoE+)

Certifications FCC Class A, CE
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
