150Mbps Wireless 802.11b/g/n

BR-6228nC

  • Complies with 802.11b/g and compatible with 802.11n standards
  • Supports WISP (Wireless ISP) connection mode
  • Supports Green technology for power saving
  • Includes EZmax multi-language setup wizard for internet connection, wireless settings and firmware upgrade
  • Supports WEP, WPA, WPA2, DDNS, DMZ, Virtual Server, QoS and DHCP


Wireless Green Technology

Edimax BR-6228nC implemented the latest wireless green technology which could save energy by detecting the usage of wireless transference. It could supply the right amount of power to reach each connected wireless device when they are performing data transmission and save up to 74% of the power consumption. When in full loading, BR-6228nC could also save 50% power consumption than non-green solution routers.


Impressive Data Transmission Rate via IEEE802.11n

Edimax BR-6228nC is a high speed solution that complies with wireless IEEE 802.11b/g, and is compatible with IEEE 802.11n standard. When fine-tuned to operate using the wireless 802.11n technology, BR-6228nC wireless data transmission rate can reach up to 150Mbps – a coverage better than a standard 802.11g/b router. BR-6228nC is truly a high performance and cost-effective solution for your home and small business environments.


Extensive Internet Connection Sharing

With the built in NAT (Network Address Translation) function , the Edimax BR-6228nC allows up to 253 wired or wireless clients to simultaneously share an Internet connection.


Flexible WISP ( Wireless Internet Service Provider) Connection Mode

Wireless connection from your broadband router to an ISP’s Access Point is also possible. When the BR-6228nC is assigned to perform such task, it repeats the signal from a wireless Internet Service Provider to your home or office, simultaneously allowing connection of both wired and wireless stations to the Internet.


Easy & Multilingual Setup Installation CD*

A unique multilingual Setup Wizard is provided in the installation CD. By simply following the animated installation procedures, connection of your router to the Internet is done within minutes! (*The EZMax Setup CD Wizard only supports Edimax wireless routers.)


WPS (Wi-Fi Protected Setup) Button

Edimax BR-6228nC supports you to build the connection between wireless network client and the router by simply pressing the WPS button on the wireless client and the router. No need to set up and configure the security on a wireless network.

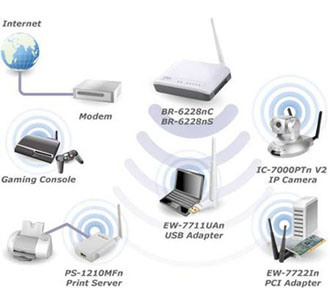

APPLICATION DIAGRAM



SPECIFICATIONS

Functions
  • Supports AP, AP Client, Bridge, Bridge+ WDS, and Universal Repeater modes
  • Port Triggering for special applications
  • DDNS and SIP
  • Virtual Server and DMZ hosting
  • MAC/IP filter and URL blocking
  • Static routing
  • UPnP architecture
  • VPN Pass-Through (IPSec/PPTP)
  • Schedule control
Hardware Interface
  • 1 x RJ-45 WAN port
  • 1 x RJ-45 WAN port
  • 4 x RJ-45 Fast Ethernet LAN ports
  • LED Indicators: Power, Wireless, WAN, LNK/ACT for LAN
  • 1 x 3dBi detachable antenna
  • WPS/Reset button
Management & Installation
  • 12-language user interface
  • Supports remote management
  • System status and security Log (Web Interface)
  • Firmware upgradable
  • Multi-language EZmax Setup Wizard
WAN
  • Supports WISP connection mode
  • Supports RJ-45 cable/xDSL modems
  • WAN protocol: PPPoE, Static IP, PPTP, Dynamic IP, L2TP
Output Power
  • 11n: 15±1dBm,
  • 11g: 15±1dBm,
  • 11b: 18±1dBm
Receive Sensitivity
  • 11n (40MHz): -68dBm,
  • 11n (20MHz): -71dBm,
  • 11g: -74dBm,
  • 11b: -87dBm
Security
  • NAT/NAPT IP sharing
  • 64/128-bit WEP encryption and WPA-PSK, WPA2-PSK security
  • DHCP Server/Client
  • QoS for critical operations
  • SPI Anti-DoS Firewall
Memory
  • 4MB NOR Flash
  • 16MB RAM
Humidity & Temperature
  • Humidity: 10-90% (non-condensing)
  • Temperature: 0-45°C
Power Adapter
  • DC 5V, 1A
Dimensions
  • 134 (W) x 110 (D) x 26 (H) mm
Certification
  • FCC, CE



PACKAGE CONTENT


  • Broadband router (1 pcs)
  • Quick installation guide (1 pcs)
  • CD with multi‐language QIG and user manual (1 pcs)
  • 5V DC power adapter (1 pcs)
  • Ethernet cable (1 pcs)
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
