8-Port 2.5GbE Web Smart Switch with 1 10GbE Multi-Gigabit Port

TGS-3109XT

Edimax Pro Logo
  • 8 x 2.5GbE and 1 x 10GbE Multi-Gigabit 5-Speed (100M/1G/2.5G/5G/10G) RJ45 port
  • No need to upgrade cabling infrastructure doubles network bandwidth up to 2.5GbE by leveraging existing CAT5E cabling infrastructure
  • Web-based setup interface enables easy configuration and management
  • Supports smart management features including QoS,  802.1Q VLAN, Port Trunking/Link Aggregation, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, Loop Detection/Prevention and more
  • Supports 60Gbps backplane bandwidth, 44.64Mpps forwarding rate, 4K MAC address table and 12KB jumbo frame
  • Fanless, quiet, compact and durable wall-mountable metal chassis design
Share


Smartly Manage and Upgrde to 2.5GbE Multi-Gigabit Networks

8-Port 2.5GbE Web Smart Switch  TGS-3109XT



Simply Boost Your Gigabit Connection

EDIMAX TGS-3109XT 9-Port 2.5 and 10 Gigabit web smart switch with existing CAT5E cabling for cost saving

Doubled Performance up to 2.5GbE with Ease

Just plug Ethernet enabled devices into the TGS-3109XT to double the network bandwidth up to 2.5GbE while leveraging existing CAT5E cabling infrastructure for cost saving with no additional cables required.

EDIMAX TGS-3109XT 9-Port 2.5 and 10 Gigabit web smart switch with 10 Gigabit 5-Speed Multi-Gig connection

5-Speed Multi-Gigabit Connectivity

The dedicated RJ45 10GbE Multi-Gigabit (100M/1G/2.5G/5G/10G) port uplink capability allows the TGS-3109XT to break the uplinking connectiviey gigabit barrier.

EDIMAX TGS-3109XT 9-Port 2.5 and 10 Gigabit web smart switch with flexible wall-mount and campact design

Flexible Wall-Mount, Desktop Deployment

Easy and flexible wall-mount and desktop installation for expanding home and small business networks.

EDIMAX TGS-3109XT 9-Port 2.5 and 10 Gigabit web smart switch with intuitive and powerful smart tool

Intuitive and Powerful Smart Tool

The intuitive web-based management features include QoS, 802.1Q VLAN, Port Trunking, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, etc.

Essential Web Smart Management

EDIMAX TGS-3109XT 9-Port 2.5 and 10 Gigabit web smart switch with with VLAN support

VLAN Support

Helps separate traffic within a business such as isolated resources between network administrations and general users or between employees and public guest users.

EDIMAX TGS-3109XT 9-Port 2.5 and 10 Gigabit web smart switch with link aggregation

Link Aggregation

Combining (aggregating) multiple network connections in parallel to make a single high-bandwidth data path for faster file transfer and enhanced connection reliability.

EDIMAX TGS-3109XT 9-Port 2.5 and 10 Gigabit web smart switch with broadcast storm control

Broadcast Storm Control

The broadcast storm control feature can set up limits for each type of traffic in order to prevent broadcast storm from disrupting your networks.

EDIMAX TGS-3109XT 9-Port 2.5 and 10 Gigabit web smart switch with loop detection

Loop Detection

The loop detection feature can identify and remove loops to avoid slowdowns or stop normal traffic while the switch is connected to itself.

EDIMAX TGS-3109XT 9-Port 2.5 and 10 Gigabit web smart switch with IGMP Snooping v1/v2/v3

IGMP Snooping

The switch supports IGMP snooping v1/v2/v3, optimized multicast performance and improvied multicast services such as video streaming, resulting in smoother video reproduction.

EDIMAX TGS-3109XT 9-Port 2.5 and 10 Gigabit web smart switch with QoS support

QoS Support

The 802.1p QoS support provides different priorities to different applications or users to guarantee a high level of performance for maximum data transferring efficiency from your network.

Ideal for Enterprise, Business, Small Office or Home Networks

EDIMAX TGS-3109XT 9-Port 2.5 and 10 Gigabit web smart switch

Enterprise or Business Networks

EDIMAX TGS-3109XT 9-Port 2.5 and 10 Gigabit web smart switch for Small Office or Home Networks

Small Office or Home Networks

Networking Scenarios

EDIMAX TGS-3109XT 9-Port 2.5GbE Web Smart Switch with 1 10GbE Multi-Gigabit Port

2.5GbE Series & Accesorry

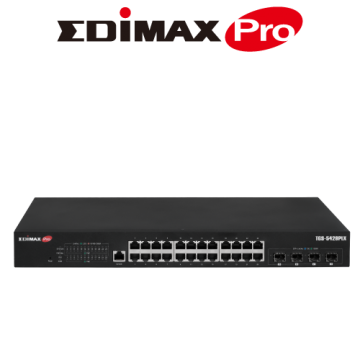

Surveillance VLAN Long Range 28-Port 2.5 Gigabit PoE++ Web Smart Switch with 1 SFP+ 10G Port

TGS-5428PLX

28-Port 2.5GbE PoE++ Web Smart Switch with 4 10G SFP+ Ports

EDIMAX TGS-3109PLX 9-Port 2.5GbE PoE++ Web Smart Switch with 1 10G SFP+ Port

TGS-3109PLX

8-Port 2.5GbE PoE++ Web Smart Switch with 1 10G SFP+ Port

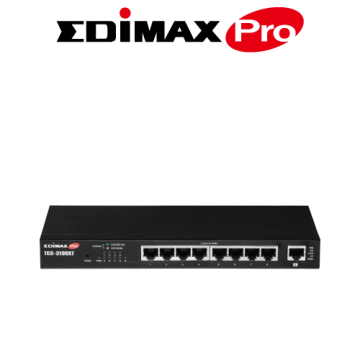

EDIMAX TGS-3109XT 9-Port 2.5GbE Web Smart Switch with 1 10GbE Multi-Gigabit Port​​

TGS-3109XT

8-Port 2.5GbE Web Smart Switch with 1 10GbE Multi-Gigabit Port

EDIMAX EA1 10GbE SFP+ DAC Direct Attach Cable

EA1 Series

10GbE SFP+ DAC Direct Attach Cable

Share


SPECIFICATIONS
HARDWARE
Ports
  • 8 x RJ45 2.5Base-T 2.5 Gigabit Ports
  • 1 x RJ45 10GBase-X 10 Gigabit Uplink Port
Buttons Reset Button
LED Indicators
  • PWR: System Power Status
  • Link/Act: Connection and Transmission Status
Power Input External Power Supply (DC12V/1A)
Mounting Desktop / Wall-mount
Housing Metal
Fan Fanless
Dimensions 240 (W) x 105 (D) x 27 (H) mm
(9.45 (W) x 4.13 (D) x 1.06 (H) inches)
Weight 713g (1.58lb)
PERFORMANCE
Switching Capacity / Backplane 60Gbps
Forwarding Rates Max. 44.64Mpps (64-byte Package Size)
MAC Address Table 4K
Jumbo Frames 12KB
Packet Buffer 8.1Mb
SMART FEATURES
Quality of Service (QoS)
  • Port-based QoS
  • IEEE802.1p QoS
  • 4 Priority Queues
  • Scheduling Algorithms
VLAN
  • Up to 10 VLANs
  • 802.1Q Tag-based VLAN
Port Trunking
  • IEEE 802.3ad LACP Trunk-Static Trunk
IGMP Snooping
  • IGMP v1/v2/v3 Snooping
  • Block unknown multicast traffic
  • Multicast Groups: 128
Port Mirroring Port Mirroring Traffic Direction:
  • Both (Ingress and Egress)
  • Ingress
  • Egress
Security
  • Broadcast Storm Control
Management
  • User Interface: Web-based management
  • User Account: Login account configuration
  • Firmware Upgrade: Firmware upgrade by WEB
  • Loop Detection/Prevention
OTHERS
Standard
  • IEEE 802.3u 100Base-TX Fast Ethernet
  • IEEE 802.3ab 1000Base-T Gigabit Ethernet
  • IEEE 802.3bz 2.5GBase-T 2.5G Ethernet
  • IEEE 802.3an 10GBase-T 10 Gigabit Ethernet
  • IEEE 802.3x Full-duplex and Flow Control
  • IEEE 802.1p Quality of Service (QoS)
  • IEEE 802.1Q Virtual LANs VLANs
  • IEEE 802.3ad Link Aggregation Control Protocol (LACP)
  • IEEE 802.3az Energy Efficient Ethernet
Environmental Condition Tempertatue:
  • Operating: 0 ~ 40℃ (32~104°F)
  • Storage: -40 ~ 70℃ (-40~158°F)
Humidity:
  • Operating: 10 ~ 90%  (Non-condensing)
  • Storage: 10 ~ 90%  (Non-condensing)
Certifications FCC, CE
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
