Industrial 16-Port Gigabit PoE+ Web Managed Switch with 8 PoE+ Ports and 4 SFP Slots
IGS-5416P
- Sixteen Gigabit Ethernet ports with eight PoE+ porrts and four SFP slots.
- IEEE 802.3af/at PoE compliant.
- Up to 30W per port (total power budget: 240W) for powering PoE-enabled devices.
- PoE powered devices (PD) alive check to enhance the reliability of the network.
- Built for harsh environments with -40~75°C wide temperature range.
- Industrial ruggedized design with IP30-rating aluminum alloy case.
- Supports RSTP, MSTP, ERPS, LACP for network redundancy to ensure the network connection reliability.
- Equipped with redundant power inputs (both Digital Input (DI) and Digital Output (DO)) and embedded protecting circuit to avoid damaging the switch.
- Supports Storm Control to suppress a packet storm in a network (Storm Protection).
- DHCP snooping to protect the integrity of legitimate DHCP server and its operations.
- Supports SNMP v3, Access Control List (ACL), QoS, CoS, STP, 802.1Q VLAN, IPv4/IPv6, Port Trunk, IGMP v1/v2/v3 Snooping and Mirror.
- USB console port for efficient configuration backup and restore and firmware upgrade.
- 40Gbps switch capacity.
- 16K MAC address table and jumbo frame support up to 16KB.
- Fanless, compact size with DIN-Rail and wall mounting enabled design.
Robust Industrial Managed Switch
Durable, Reliable, Flexible & Smart Network for Harsh Environments.
Certified Ruggedized Design
Equipped with anti-dust IP30-rated aluminum alloy case, the switch is designed and certified to withstand a high degree of vibration, shock, free-fall protection and against ESD/EMI surge for harsh environments.*
High/Low Temp. Resistance
The industrial switch operates with a wide temperature range from -40°C to 75°C (-40°F to 167°F) for industrial and outdoor network deployment with capability of withstanding the extreme hot and freezing environments.
Reliable Dual Redundancy
Supports network redundancy with RSTP, MSTP, ERPS, LACP and power redundancy with two power inputs to ease the unexpected risk and ensure stable and reliable network service quality.
*The switch also has industrial-grade certification of EMC (Electromagnetic Compatibility) 61000-6-2, 61000-6-4 and EMS (Electromagnetic Sensitivity) IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8 (Magnetic Field).
Noteworthy Benefits for Your Network
Edimax Pro industrial switch series is designed for easy, flexible deployment and management with ever better cost efficiency by reducing downtime, extending system lifecycle and lowering maintenance costs with more features as below but not last.
PoE PD Alive Check
PoE Powered Device (PD) alive check to monitor real-time status of connected PDs and enable to reboot fail PDs to enhance the reliability of the network.
USB Console Port
Designed with the USB console port for convenient system backup, restoration and upgrade to enhance maintenance efficiency and reduce system downtime.
Long Range Fiber Link
Featuring with dual-speed fiber SFP slots, connects to uplink to backbone core switch and monitoring data center in long distance from 550M to 30KM.*
Smart & Secure Mgmt.
The industrial switch features smart and simple network monitoring tools that allow for improved network efficiency and security.
*The maximum fiber optic cable distance is subject to the SFP transceiver specification.
For Harsh Environments in IIoT and Smart City
Ideal solution for industrial networks such as automotive, factory automation, oil and gas, mining, military, transportation, substation, energy and outdoor applications of railways, roads, tunnels, smart cities, city surveillance and traffic monitoring.
Manufacturing, Automotive
Energy Plant
Transportation, Smart City
Factory Automation
Related Products
IGS-5408P
Industrial 8-Port Gigabit PoE+ Web Managed Switch with and 4 SFP Slots

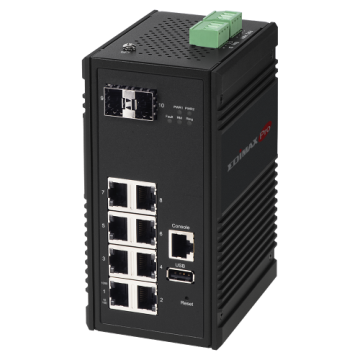

IGS-5208
Industrial 8-Port Gigabit Web Managed Switch with 2 SFP Slots
MG-1000 Series V2
1000Base-T SX LX SFP Modules
SPECIFICATIONS
| HARDWARE | |
| Ports | •8 x RJ45 10/100/ 1000 Base-TGigabit PoE+ ports •8 x RJ45 10/100/ 1000 Base-TGigabit ports •4 x SFP 1000Base-X slots •1 x Console port for CLI management •1 x USB 2.0 port for firmware update, configuration backup, restore, boot up and system log storage |
| Button | 1 x Multiple function reset button |
| Transmission Method | Store and forward |
| LED Indicators | •Per Port: Link/ActPer unit: PWR1, PWR2, Fault, Ring Master, Ring State •Port: Link/Active with highest speed (green), low speed (amber) •PoE: Output power |
| Power Input | Redundant Dual DC 48V-57V |
| Power Consumption | Max. 22.08W (system power consumption) 0.64A@48VDC |
| Power Connection | 1 Removable 4-connect terminal block |
| Digital Input | •1 x Isolated input from the electronics •+13 to +30V fro state “1” •-30 to +3V for state “0” •Max. input current: 8mA |
| Reserve Polarity Protection | Yes |
| Overload Current Protection | Yes |
| Alarm Contact | 1 x Relay output with current carrying capacity of 1A@24VDC |
| Fan | Fanless |
| Housing | Ruggedized aluminum alloy case, IP30-rated |
| Installation | DIN-rail mounting or optional wall mounting |
| Dimensions (L x W x H) | 90.8 × 145 × 113 mm |
| Weight | 1.4kg |
| PERFORMANCE | |
| Switching Capacity | 40Gbps |
| MAC Address | 16K |
| Buffer Memory | 12M bit |
| Jumbo Frames | 16K |
| Filtering / Forwarding Rates | 1000Mbps port - 1,488,000pps 100Mbps port - 148,800pps 10Mbps port - 14,880pps Max. 29.76Mpps |
| POWER OVER ETHERNET | |
| Standard | IEEE 802.3af (PoE), IEEE 802.3at (PoE+) |
| Power Output | Up to 30W per port |
| Pin Assignment | 1/2(+), 3/6(-) End-Span (mode A) |
| Total PoE Power Budget | Max. 240W |
| Power Feeding Detecting Capability on PD | Yes |
| PD Classification | Yes |
| Power Management (Per Port) | •Enable/Disable PoE •Priority setting •Power level setting •Overloading protection •PoE PD alive check •PoE scheduling |
| SMART FEATURES | |
| Quality of Service (QoS) | •Eight queues on each port •WRR, SP, WRR+SP queue scheduling algorithms •Re-marking of the 802.1p priority and DSCP priority |
| Class of Service (CoS) | •IEEE 802.1p class of service (SPQ, WRR) •Port-based CoS •IP TOS precedence •802.1p VLAN Information based CoS •DSCP based CoS •TCP/UDP Based CoS |
| Spanning Tree | •IEEE 802.1d Spanning Tree Protocol (STP) •IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) •IEEE 802.1s Multiple Spanning Trees (MSTP) |
| VLAN | •Up to 200 VLANs and 4096 VLAN IDs •802.1Q tag-based VLAN •Port-based VLAN •Q-in-Q |
| Link Aggregation | IEEE 802.3ad with LACP |
| IPV6 | •IPv6 over Ethernet (RFC 2464) •Dual-stack (RFC 4213) •ICMPv6 (RFC 4884) •Neighbor discovery (RFC 4861) •Auto configuration •Static IPv6 address and prefix length •Static IPv6 default gateway •IPv6 duplicate address detection |
| Port Trunking | IEEE 802.3ad LACP Trunk-Static trunk up to 8 trunk groups |
| IGMP Snooping | •IGMP v1/v2 /V3 snooping (1023 IGMP groups) •IGMP Static Multicast Addresses •Querier, Immediate Leave |
| Mirror | Port mirroring both on ingress and egress traffic |
| Security | •Storm Control •Management system user name/password protection •IEEE 802.1x Port-based access control •RADIUS (Authentication, Authorization, Accounting) •TACACS+ •HTTP & SSL (Secure Web) •SSH v2.0 (Secured Telnet Session) |
| Management | •User Interface: Web-based management •User Account: Login account configuration •Firmware Upgrade: Firmware upgrade by WEB HTTP •Syslog: Support event log, error log •Command Line Interface (CLI) •Telnet •Configuration download/upload •SNMP (v1/v2/v3) •RMON (1, 2, 3 & 9 groups) •DHCP (server/Client/Relay/Option82) •NTP/LLDP •Port Mirroring •Industrial Profiles: Modbus TCP, Ethernet/IP |
| ENVIRONMENT | |
| Temperature | Operating: -40 ~ 75℃ Storage: -40 ~ 80℃ |
| Humidity (Non-condensing) | Operating: 10 ~ 95% Storage: 10 ~ 90% |
| MTBF (Mean Time Between Failure) | >100,000 hours |
| STANDARDS COMPLIANCE | |
| Standards | IEEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTX Fast Ethernet IEEE 802.3ab 1000BaseT Gigabit Ethernet IEEE 802.3z 1000BaseSX/LX IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3at Power over Ethernet Plus (PoE+) IEEE 802.3x Full-duplex and flow control |
| CERTIFICATIONS | |
| EMI | FCC Part 15 Subpart B Class A CE EN 55032 Class A |
| EMS | IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field) |
| EMC | 61000-6-2 61000-6-4 |
| Green | RoHS Compliant |
| Vibration | IEC60068-2-6 |
| Shock | IEC60068-2-27 |
| Free Fall | IEC60068-2-32 |
