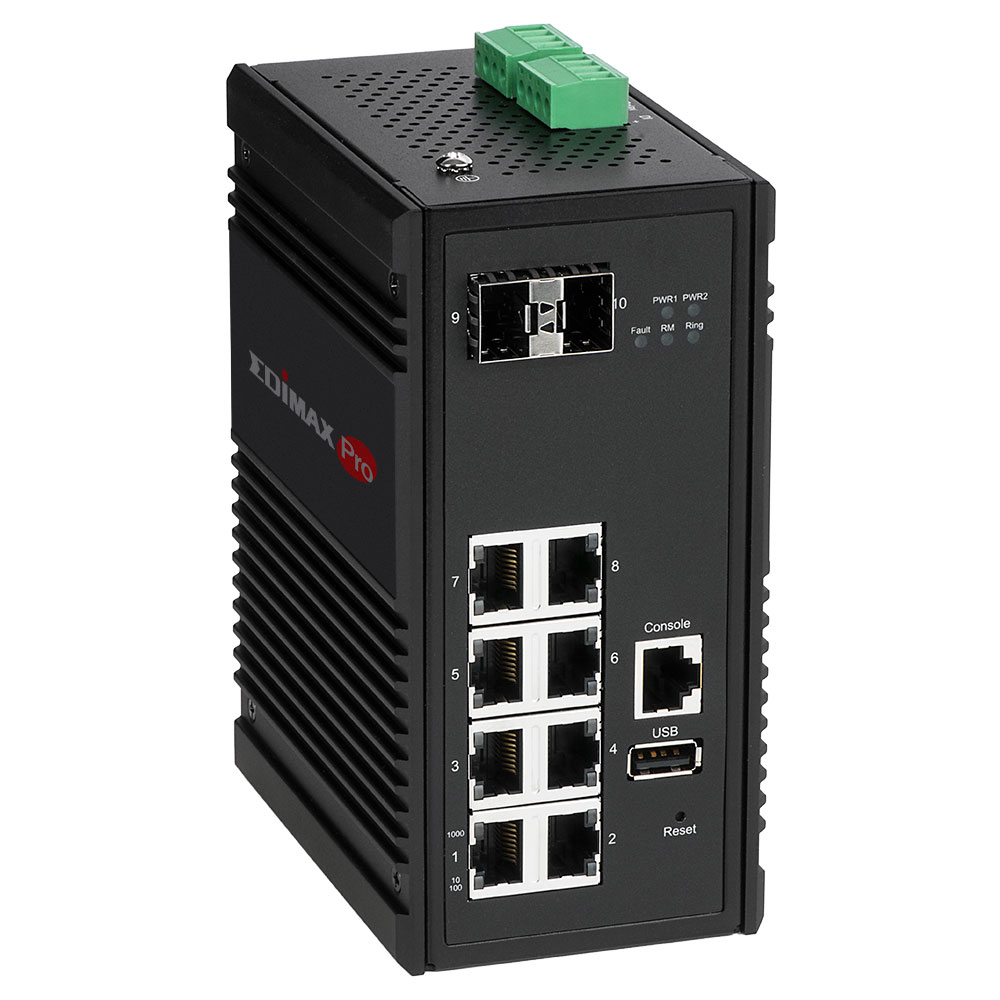

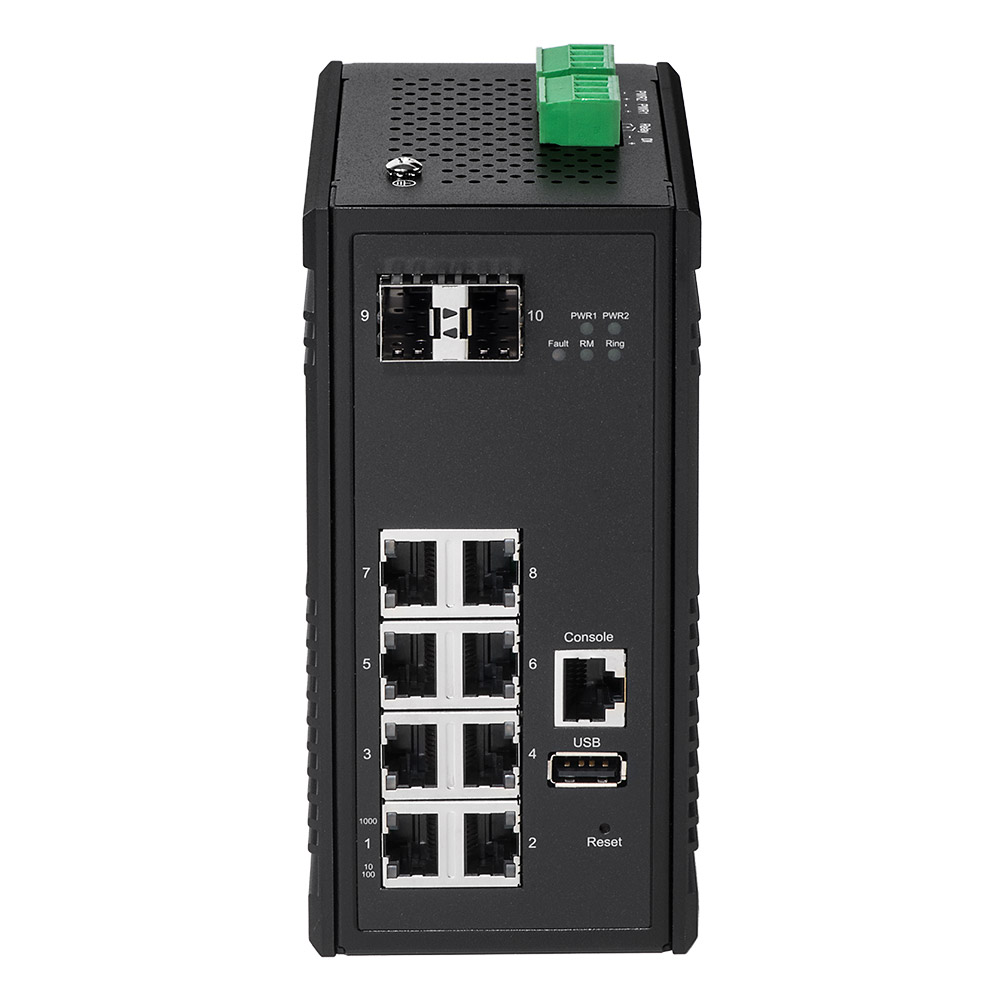

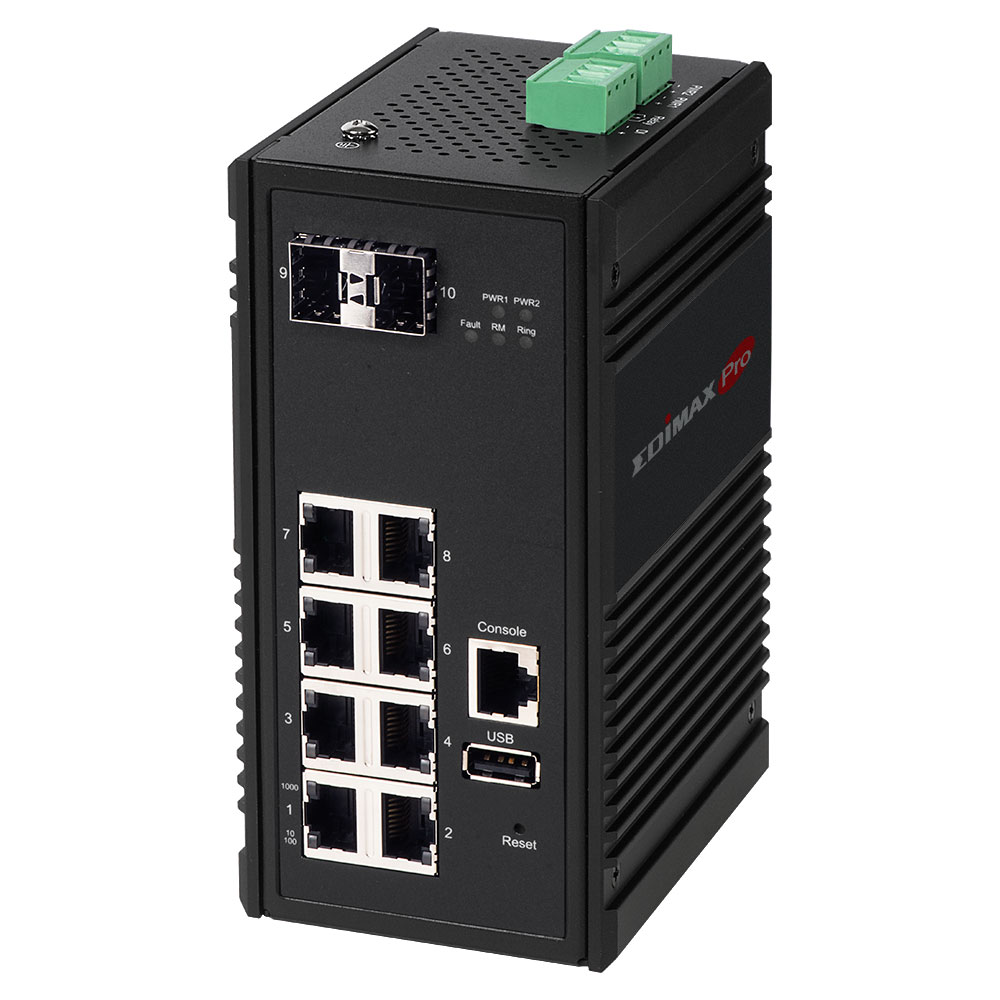

Industrial 8-Port Gigabit Web Managed Switch with 2 SFP Slots

IGS-5208

Edimax Pro Logo
  • Eight Gigabit Ethernet ports with two SFP slots.
  • Built for harsh environments with -40~75°C wide temperature range.
  • Industrial ruggedized design with IP30-rating aluminum alloy case.
  • Supports RSTP, MSTP, ERPS, LACP for network redundancy to ensure the network connection reliability.
  • Equipped with redundant power inputs (both Digital Input (DI) and Digital Output (DO)) and embedded protecting circuit to avoid damaging the switch.
  • Supports Storm Control to suppress a packet storm in a network (Storm Protection).
  • DHCP snooping to protect the integrity of legitimate DHCP server and its operations.
  • Supports SNMP v3, Access Control List (ACL), QoS, CoS, STP, 802.1Q VLAN, IPv4/IPv6, Port Trunk, IGMP v1/v2/v3 Snooping and Mirror.
  • USB console port for efficient configuration backup and restore and firmware upgrade.
  • 20Gbps switch capacity.
  • 16K MAC address table and jumbo frame support up to 16KB.
  • Fanless, compact size with DIN-Rail and wall mounting enabled design.

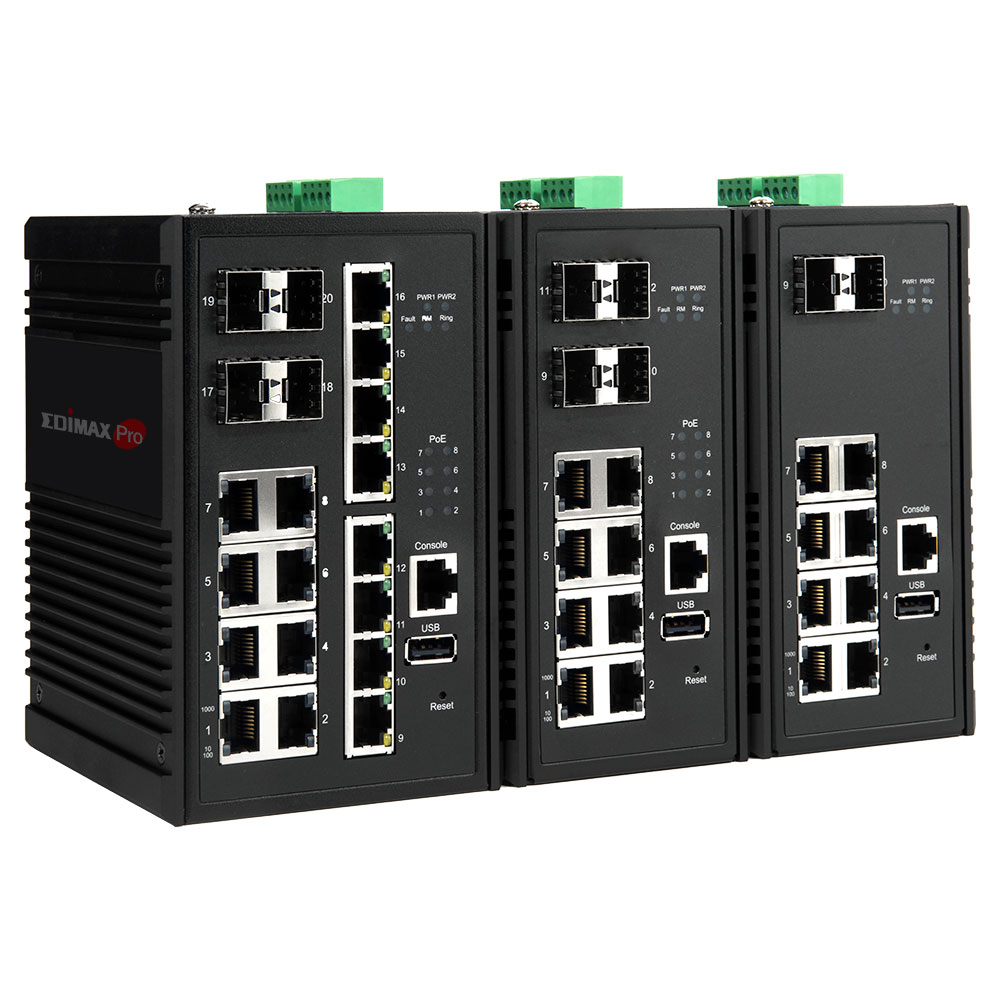

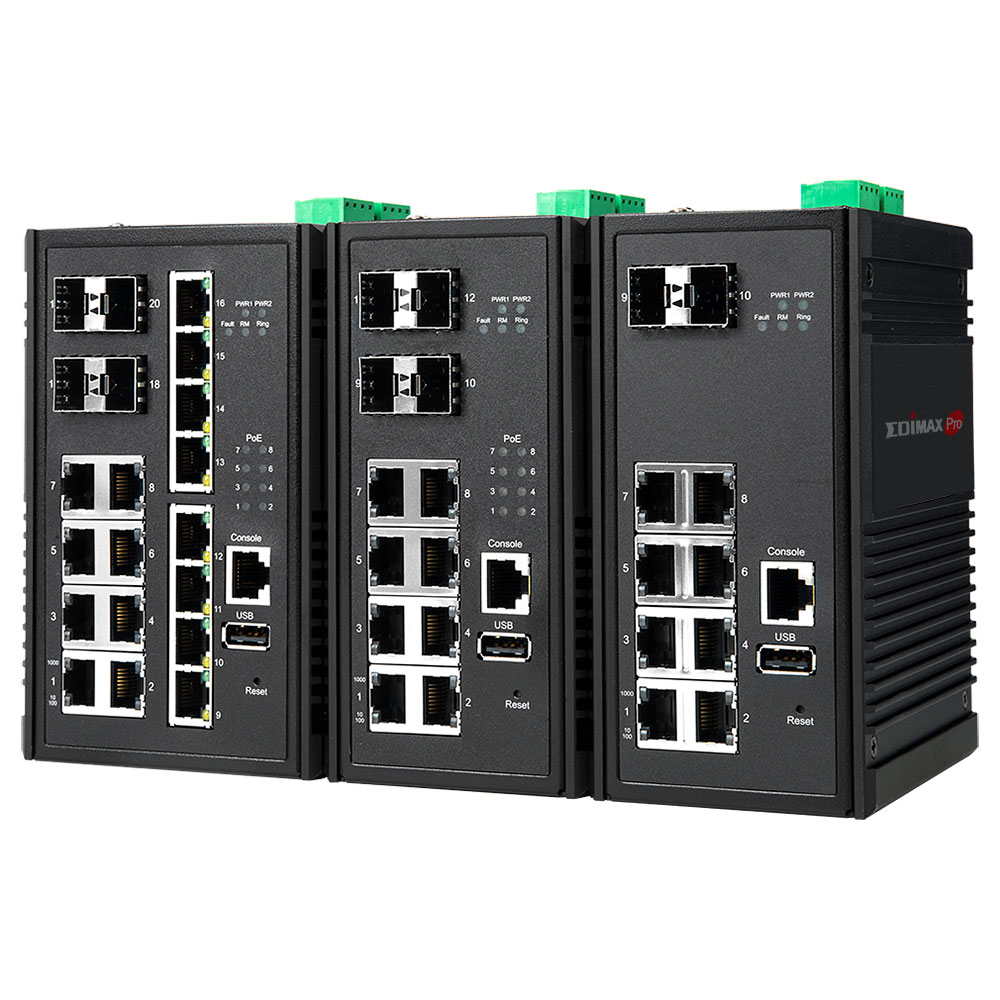

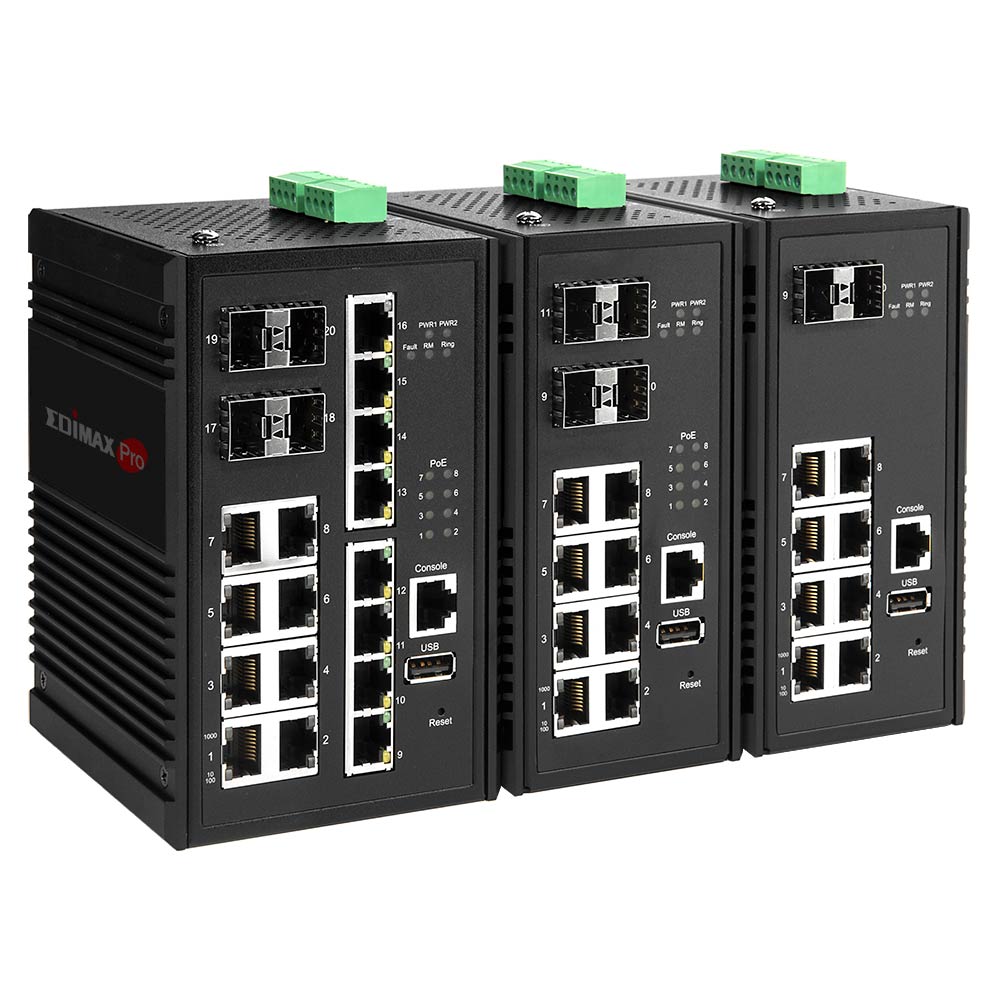

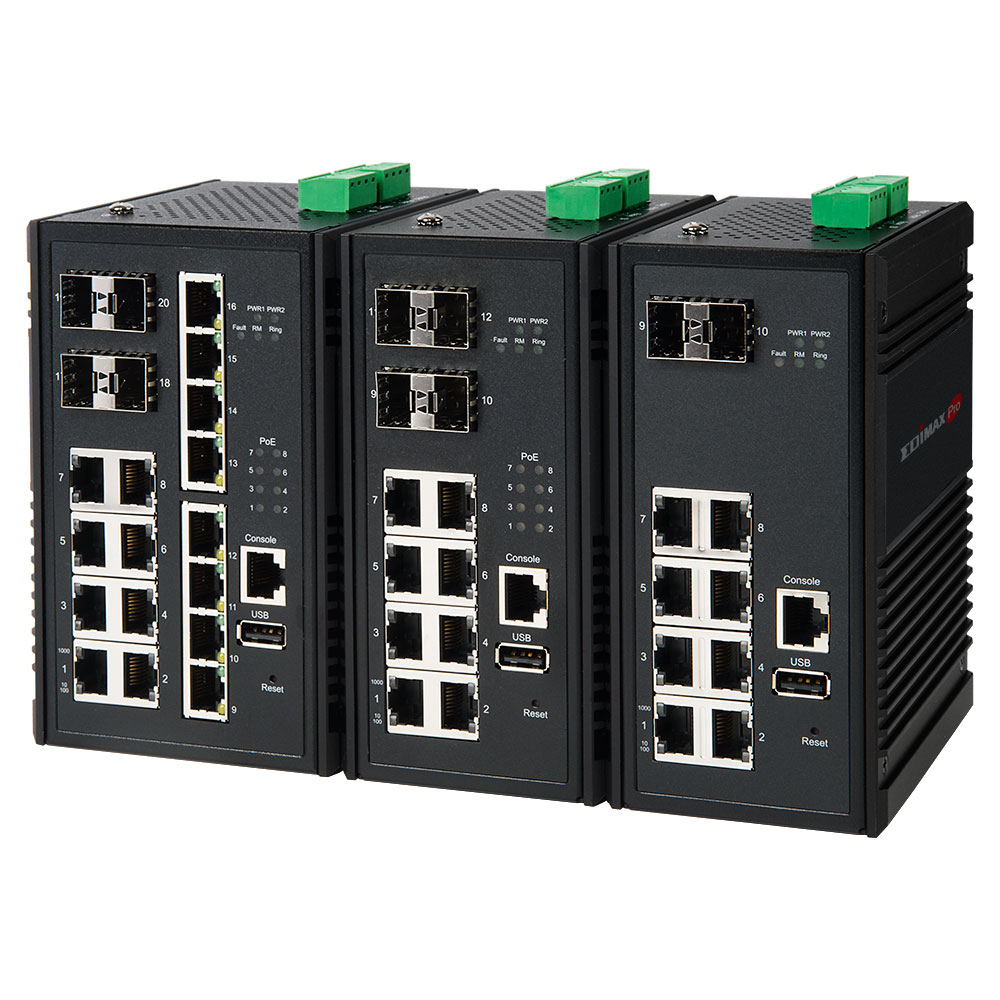

Edimax Pro Industrial Switch, IEC Certified, durable, rugged, robust, Gigabit, SFP, IGS-5416P, IGS-5408P, IGS-5208


Robust Industrial Managed Switch

​Durable, Reliable, Flexible & Smart Network  for Harsh Environments.

Edimax Pro Industrial Switch, IGS-5208, IGS-5408P, IGS-5416P, IEC Certified, Ruggedized Design, IP30, Certified Ruggedized Design

Certified Ruggedized Design

Equipped with anti-dust IP30-rated aluminum alloy case, the switch is designed and certified to withstand a high degree of vibration, shock, free-fall protection and against ESD/EMI surge for harsh environments.*

Edimax Pro Industrial Switch, IGS-5208, IGS-5408P, IGS-5416P, IEC Certified, Ruggedized Design, IP30,High/Low Temp. Resistance

High/Low Temp. Resistance

The industrial switch operates with a wide temperature range from -40°C to 75°C (-40°F to 167°F) for industrial and outdoor network deployment with capability of withstanding the extreme hot and freezing environments.

Edimax Pro Industrial Switch, IGS-5208, IGS-5408P, IGS-5416P, IEC Certified, Ruggedized Design, IP30, Reliable Dual Redundancy

Reliable Dual Redundancy

Supports network redundancy with RSTP, MSTP, ERPS, LACP and power redundancy with two power inputs to ease the unexpected risk and ensure stable and reliable network service quality.



*The switch also has industrial-grade certification of EMC (Electromagnetic Compatibility) 61000-6-2, 61000-6-4 and EMS (Electromagnetic Sensitivity) IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8 (Magnetic Field).

Noteworthy Benefits for Your Network

​​Edimax Pro industrial switch series is designed for easy, flexible deployment and management with ever better cost efficiency by reducing downtime, extending system lifecycle and lowering maintenance costs with more features as below but not last.

Edimax Pro Industrial Switch, IGS-5208, IGS-5408P, IGS-5416P, IEC Certified, Ruggedized Design, IP30,USB Console Port

USB Console Port

Designed with the USB console port for convenient system backup, restoration and upgrade to enhance maintenance efficiency and reduce system downtime.

Edimax Pro Industrial Switch, IGS-5208, IGS-5408P, IGS-5416P, IEC Certified, Ruggedized Design, IP30,Long Range Fiber Link

Long Range Fiber Link

Featuring with dual-speed fiber SFP slots, connects to uplink to backbone core switch and monitoring data center in long distance from 550M to 30KM.*

Edimax Pro Industrial Switch, IGS-5208, IGS-5408P, IGS-5416P, IEC Certified, Ruggedized Design, IP30, Smart and Secure Mnagement

Smart & Secure Mgmt.

The industrial switch features smart and simple network monitoring tools that allow for improved network efficiency and security.



*The maximum fiber optic cable distance is subject to the SFP transceiver specification.

For Harsh Environments in IIoT and Smart City

​​Ideal solution for industrial networks such as automotive, factory automation, oil and gas, mining, military, transportation, substation, energy and outdoor applications of railways, roads, tunnels, smart cities, city surveillance and traffic monitoring.

Edimax Pro Industrial Switch, IGS-5208, IGS-5408P, IGS-5416P, IEC Certified, Ruggedized Design, IP30, Manufacturing, Automotive

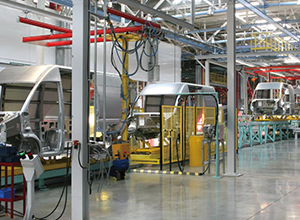

Manufacturing, Automotive

Edimax Pro Industrial Switch, IGS-5208, IGS-5408P, IGS-5416P, IEC Certified, Ruggedized Design, IP30, energy Plant

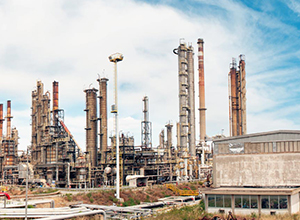

Energy Plant

Edimax Pro Industrial Switch, IGS-5208, IGS-5408P, IGS-5416P, IEC Certified, Ruggedized Design, IP30, Transportation, Smart City

Transportation, Smart City

Edimax Pro Industrial Switch, IGS-5208, IGS-5408P, IGS-5416P, IEC Certified, Ruggedized Design, IP30, Factory Automation

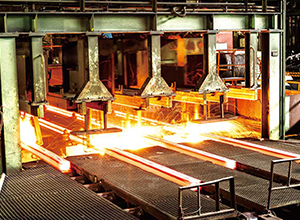

Factory Automation

Edimax Pro Industrial Switch, IGS-5208, IGS-5408P, IGS-5416P, IEC Certified, Ruggedized Design, IP30,

Related Products

Edimax Pro IGS-5416P Industrial 16-Port Gigabit PoE+ Web Managed Switch with 8 PoE+ Ports and 4 SFP Slots

IGS-5416P

Industrial 16-Port Gigabit PoE+ Web Managed Switch with 8 PoE+ Ports and 4 SFP Slots

Edimax Pro IGS-5408P Industrial 8-Port Gigabit PoE+ Web Managed Switch with 4 SFP Slots

IGS-5408P

Industrial 8-Port Gigabit PoE+ Web Managed Switch with 4 SFP Slots

Edimax Pro MG-1000 Series V2 1000Base-T SX LX SFP Modules

MG-1000 Series V2

1000Base-T SX LX SFP Modules

Edimax Pro Industrial Switch, Gigabit, PoE+, web managed, durable, reliable, rugged, ruggized, IIoT, Smart City, City Surveillance, Transportation, Smart Factory, Factory Automation, Manufacturing, Automotive, energy plant


HARDWARE

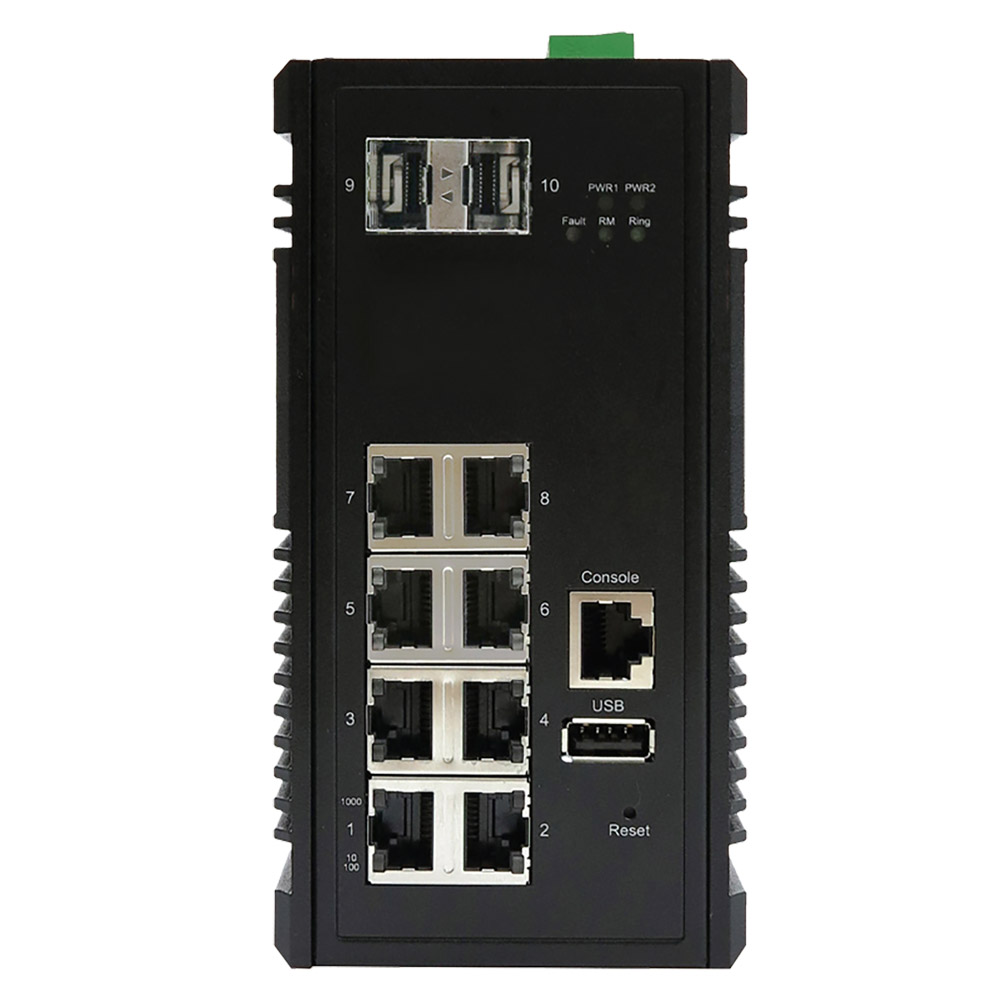

Ports 8 x RJ45 10/100/1000Base-T Gigabit ports
2 x SFP 1000Base-X slots
1 x Console port for CLI management
1 x USB 2.0 port for firmware update, configuration backup, restore, boot up and system log storage
Button 1 x Multiple function reset button
Transmission Method Store and forward
LED Indicators Per Port: Link/Act
Per unit: PWR1, PWR2, Fault, Ring Master, Ring State
Port: Link/Active with highest speed (green), low speed (amber)
Power Input Redundant Dual DC 12V-48V
Power Consumption Max. 12.24W (system power consumption) 0.51A@24VDC
Power Connection 1 Removable 4-connect terminal block
Digital Input 1 x Isolated input from the electronics
+13 to +30V fro state “1”
-30 to +3V for state “0”
Max. input current: 8mA
Reserve Polarity Protection Yes
Overload Current Protection Yes
Alarm Contact 1 x Relay output with current carrying capacity of 1A@24VDC
Fan Fanless
Housing Ruggedized aluminum alloy case, IP30-rated

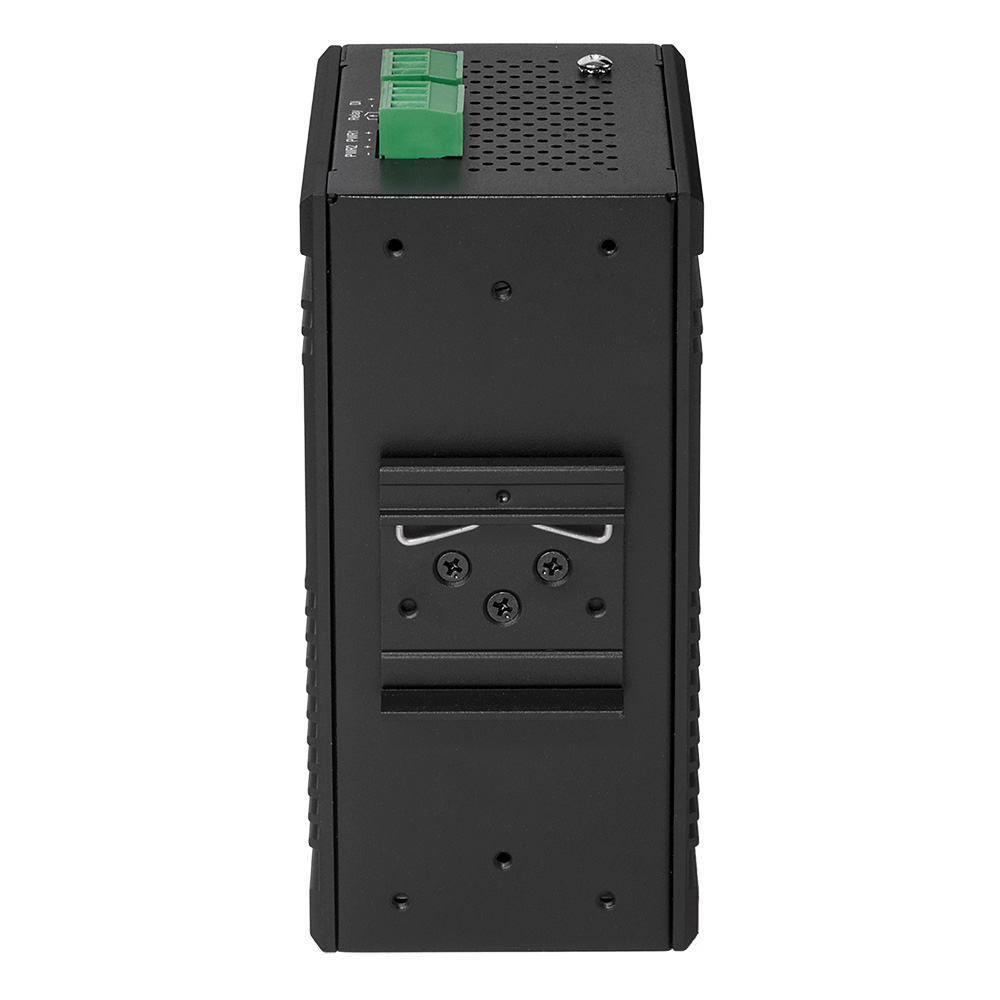

Installation DIN-rail mounting or optional wall mounting
Dimensions (L x W x H) 72.2 × 145 × 113 mm
Weight 0.85 kg
PERFORMANCE
Switching Capacity 20Gbps
MAC Address 16K
Yes 12M bit
Jumbo Frames 16K
Filtering / Forwarding Rates 1000Mbps port - 1,488,000pps
100Mbps port - 148,800pps
10Mbps port - 14,880pps
Max. 14.88Mpps
SMART FEATURES
Quality of Service (QoS) Eight queues on each port
WRR, SP, WRR+SP queue scheduling algorithms
Re-marking of the 802.1p priority and DSCP priority
Class of Service (CoS) IEEE 802.1p class of service (SPQ, WRR)
Port-based CoS
IP TOS precedence
802.1p VLAN Information based CoS
DSCP based CoS
TCP/UDP Based CoS
Spanning Tree IEEE 802.1d Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Trees (MSTP)
VLAN Up to 200 VLANs and 4096 VLAN IDs
802.1Q tag-based VLAN
Port-based VLAN
Q-in-Q
Link Aggregation IEEE 802.3ad with LACP
IPV6 IPv6 over Ethernet (RFC 2464)
Dual-stack (RFC 4213)
ICMPv6 (RFC 4884)
Neighbor discovery (RFC 4861)
Auto configuration
Static IPv6 address and prefix length
Static IPv6 default gateway
IPv6 duplicate address detection
Port Trunking IEEE 802.3ad LACP Trunk-Static trunk up to 8 trunk groups
IGMP Snooping IGMP v1/v2 /V3 snooping (1023 IGMP groups)
IGMP Static Multicast Addresses
Querier, Immediate Leave
Mirror Port mirroring both on ingress and egress traffic
Security Storm Control
Management system user name / password protection
IEEE 802.1x Port-based access control
RADIUS (Authentication, Authorization, Accounting)
TACACS+
HTTP & SSL (Secure Web)
SSH v2.0 (Secured Telnet Session)
Management User Interface: Web-based management
User Account: Login account configuration
Firmware Upgrade: Firmware upgrade by WEB HTTP
Syslog: Support event log, error log
Command Line Interface (CLI)
Telnet
Configuration download / upload
SNMP (v1/v2/v3)
RMON (1, 2, 3 & 9 groups)
DHCP (server/Client/Relay/Option82)
NTP/LLDP
Port Mirroring
Industrial Profiles: Modbus TCP, Ethernet/IP
ENVIRONMENT
Temperature Operating: -40 ~ 75℃
Storage: -40 ~ 80℃
Humidity (Non-condensing) Operating: 10 ~ 95%
Storage: 10 ~ 90%
MTBF (Mean Time Between Failure) >100,000 hours
STANDARDS COMPLIANCE
Standards IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100BaseTX Fast Ethernet
IEEE 802.3ab 1000BaseT Gigabit Ethernet
IEEE 802.3z 1000BaseSX/LX
IEEE 802.3x Full-duplex and flow control
CERTIFICATIONS
EMI FCC Part 15 Subpart B Class A
CE EN 55032 Class A
EMS IEC61000-4-2 (ESD)
IEC61000-4-3 (RS)
IEC61000-4-4 (EFT)
IEC61000-4-5 (Surge)
IEC61000-4-6 (CS)
IEC61000-4-8 (Magnetic Field)
EMC 61000-6-2
61000-6-4
Green RoHS Compliant
Vibration IEC60068-2-6
Shock IEC60068-2-27
Free Fall IEC60068-2-32
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
