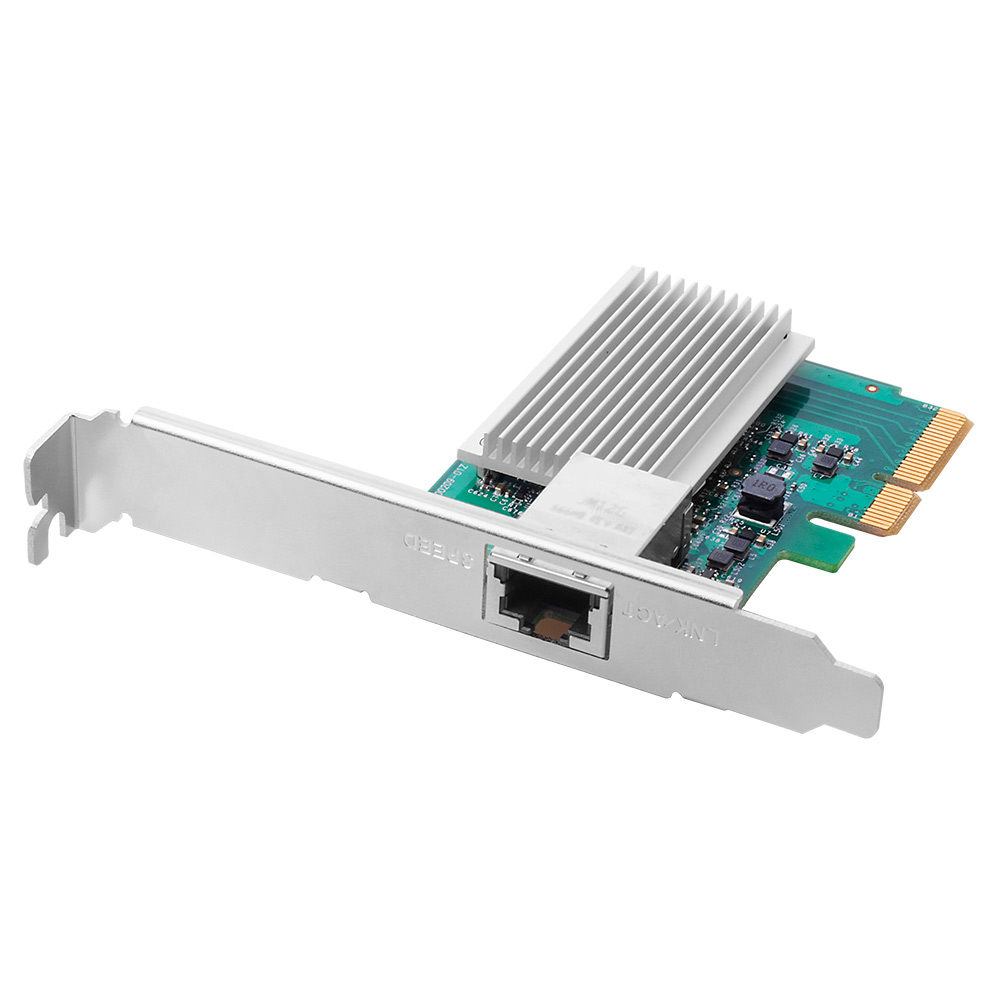

10 Gigabit Ethernet PCI Express Server Adapter

EN-9320TX-E

  • PCI Express rev. 2.0 Specification x4 interface
  • 10 Gigabit throughput with 100-meter UTP cable
  • Backward compatible with 1000Bast-T, 100Base-TX network
  • 16K jumbo frames
  • IP, TCP, UDP checksum offloading
  • Reduced CPU utilization and improved through
  • Supports IEEE 802.1Q VLAN ID tagging and IEEE 802.1q QoS

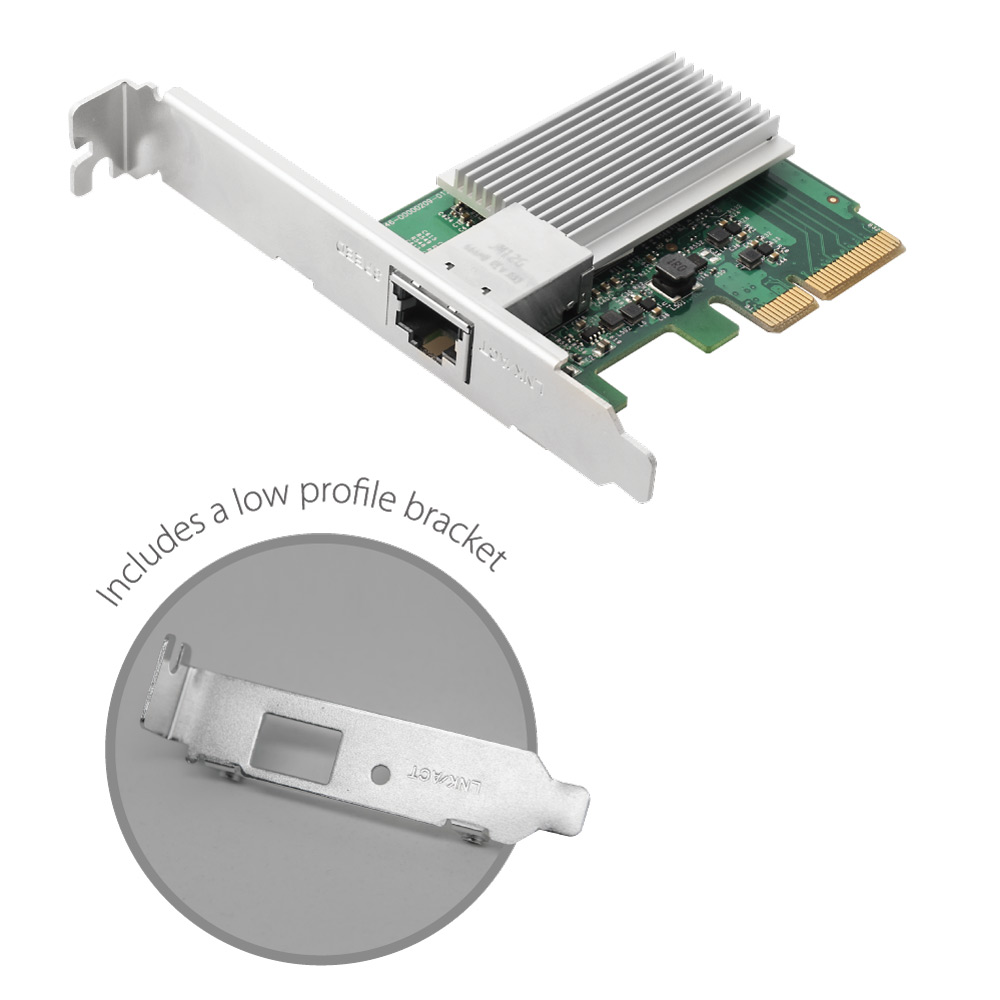

  • Low profile bracket included

    Edimax 10GbE logo
Share


The EN-9320TX-E is a 10 Gigabit Ethernet PCI Express Server Adapter designed for the high-speed PCI Express bus architecture. This meets the high-performance requirements such as large file transfers and HD video editing, which utilizes high-performance shared storage system to have improved server efficiency and network performance. Connecting the EN-9320TX-E with the RJ45 cable, your system instantly upgraded to superior performance in fast and reliable10Gbps high-speed.

The EN-9320TX-E is an ideal selection to upgrade your server or workstation as the high-performance, low-power consumption and better-quality solution to complement the requirements of low latency, high bandwidth, high-throughput and cost-effective Gigabit Ethernet Adapter.

10GbE Superior Network Speed

Equipped with a 10 Gigabit RJ45 interface, the EN-9320TX-E can provide 10 times better performance than existing Gigabit transmissions.​

Advanced Features & Security

The EN-9320TX-E features 802.1Q Virtual LAN (VLAN) tagging for Ethernet frames providing network management with a flexible and more secure environment. Moreover the card supports advanced features for best performance such as 16K Jumbo Frame and IEEE 802.3x Flow Control.​

Cost Effective and Easy Migration 10G Adapter

The cost-effective solution of 10Gbps high-speed adapter on 10 Gigabit network connection – offering full compatibility to 10/5/2.5/1Gbps and 100Mbps networking standards and existing copper network.

Application Diagrams

​Other 10GbE Products

Edimax Pro XGS-5008

Web Smart Switch

XGS-5008

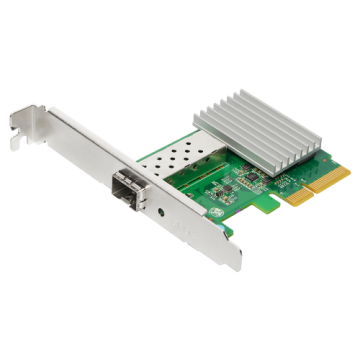

SFP+ PCI Express

EN-9320SFP+

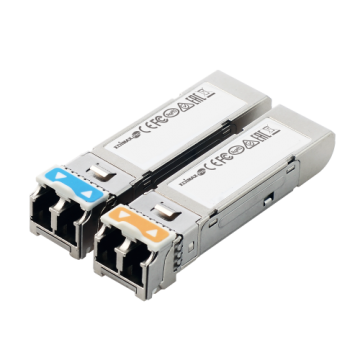

Adapter SFP+ Module

MG-10G Series

Share


SPECIFICATIONS
​
HARDWARE
Attachment Interface PCI Express Rev. 2.0 Specification x4 Interface
Media Interface RJ-45 Connector
Jumbo Frame 16K Bytes
LED Indicators ​ LNK / ACT Per Port
Typical Power Consumption 4 Watts​
SOFTWARE
OS Compatibility Windows Server 2012 R2, Server 2012, Server 2008R2, Server 2016
Windows 10, Windows 8.1, Windows 7 (32/64-bit)
Linux 4.x, 3.x, Linux 2.6.x (32/64-bit)
MAC OS Sierra (10.12.x)
VMware ESXi 6.0, 5.5, 5.1
Microsoft Hyper-V
Linux KVM
Oracle VirtualBox ​
ENVIRONMENT
Temperature Operating: 0 - 50 ℃
Storage: -40 - 85℃
Humidity (Non-condensing) Operating: 5 - 95%
Storage: 5 - 95%
Physical Characteristics
Dimensions (W x D) 82 x 62mm
Weight 45g
Standards Compliance
Standards and Protocols IEEE 802.3ae: 10Gbps Ethernet
IEEE 802.3x: Flow Control and Back Pressure
IEEE 802.2ad: Link Aggregation
IEEE 802.1Q VLAN support
RFC2819 RMON MIB statistics
Certifications FCC, CE
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
