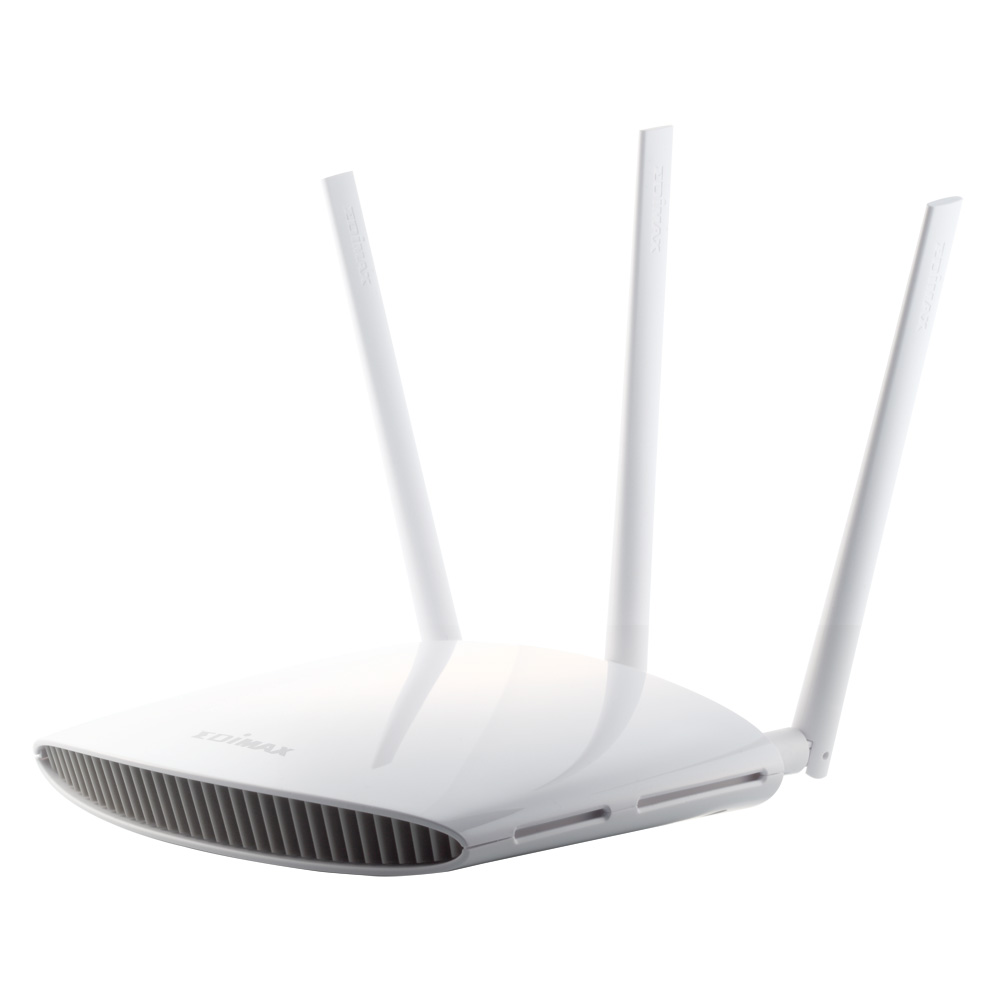

AC750 Multi-Function Dual-Band
Access Point / Range Extender

EW-7208APC

  • Next generation 802.11ac Wi-Fi standard
  • 5-in-1 Access Point, Range Extender, Router, Wireless Bridge and WISP
  • Backward compatible with 802.11a/b/g/n standards
  • Concurrent dual-band wireless connectivity for 2.4GHz and 5GHz
  • High gain detachable antennas for better Wi-Fi performance
  • Supports up to 8 Multi-SSID (2.4GHz x 4 and 5GHz x 4) & VLAN (AP mode only)
  • Supports guest network (router mode only)
  • Revolutionary iQoS for efficient and effective internet bandwidth management


Smartphones, tablets and laptop computers are everywhere, and they all rely on one thing - fast Wi-Fi. TVs, games consoles, security cameras, lighting and an ever-growing range of household appliances are all becoming network-connected devices and high-performance, reliable Wi-Fi is essential in modern homes for the things people use every day. The Edimax EW-7208APC dual-band 802.11ac access point meets the connectivity needs of homes and small businesses alike.  Featuring the latest, high-speed 11ac standard for noticeable improvements in Wi-Fi speed and performance, triple antennas for expansive coverage, easy setup and advanced features such as VLAN support, and multiple SSIDs, the EW-7208APC is an all-in-one solution to equip your home network for today and tomorrow’s Wi-Fi demands.

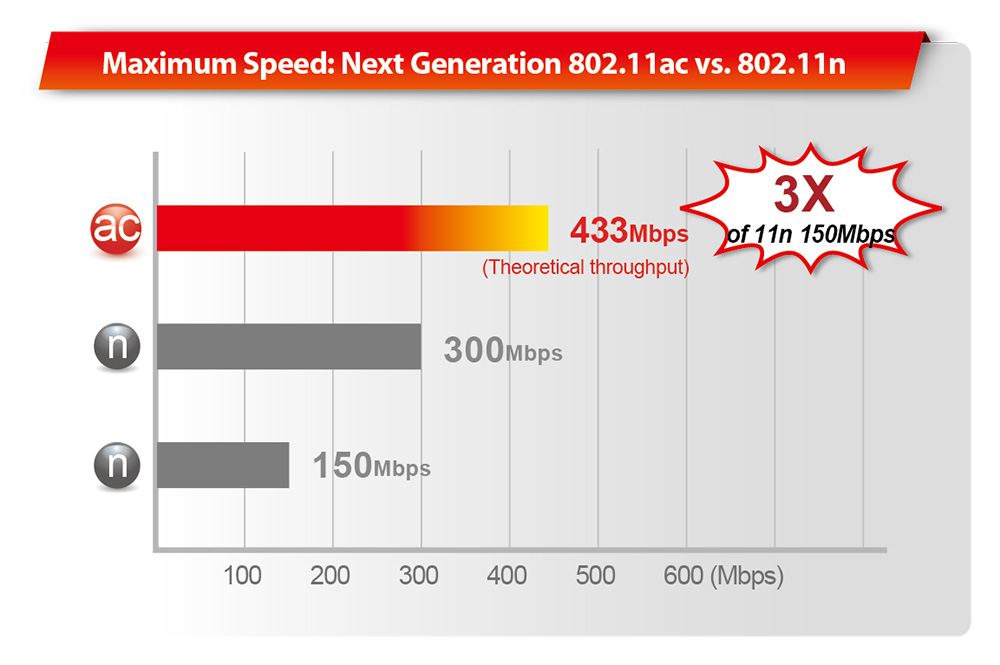

11ac Wireless Networking

The Edimax EW-7208APC supports IEEE 802.11ac wireless standard, meaning higher data rates in the 5GHz band. With 300Mbps speeds in the 2.4GHz band and 433Mbps speeds in 5GHz, the EW-7208APC is ideal for HD video streaming and large file transfers. The access point is also backward compatible with 802.11a/b/g/n to ensure compatibility with legacy Wi-Fi devices.

  Edimax EW-7208APC AC750 Multi-Function Dual-Band Access Point / Range Extender, 11ac high speed

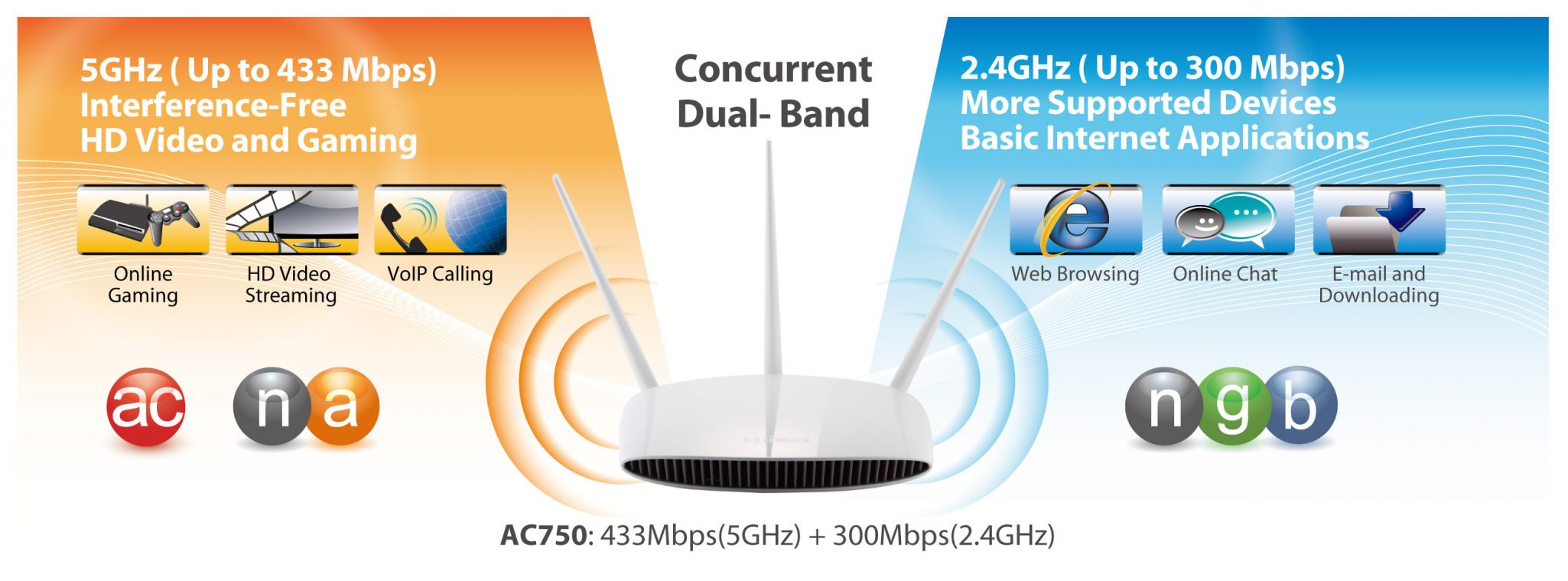

Concurrent Dual-Band Wi-Fi Connectivity

The Edimax EW-7208APC access point provides simultaneous 2.4GHz (802.11n) and 5GHz (802.11ac) wireless network connectivity for maximum flexibility for your network devices.

Edimax EW-7208APC AC750 Multi-Function Dual-Band Access Point / Range Extender, current dual-band

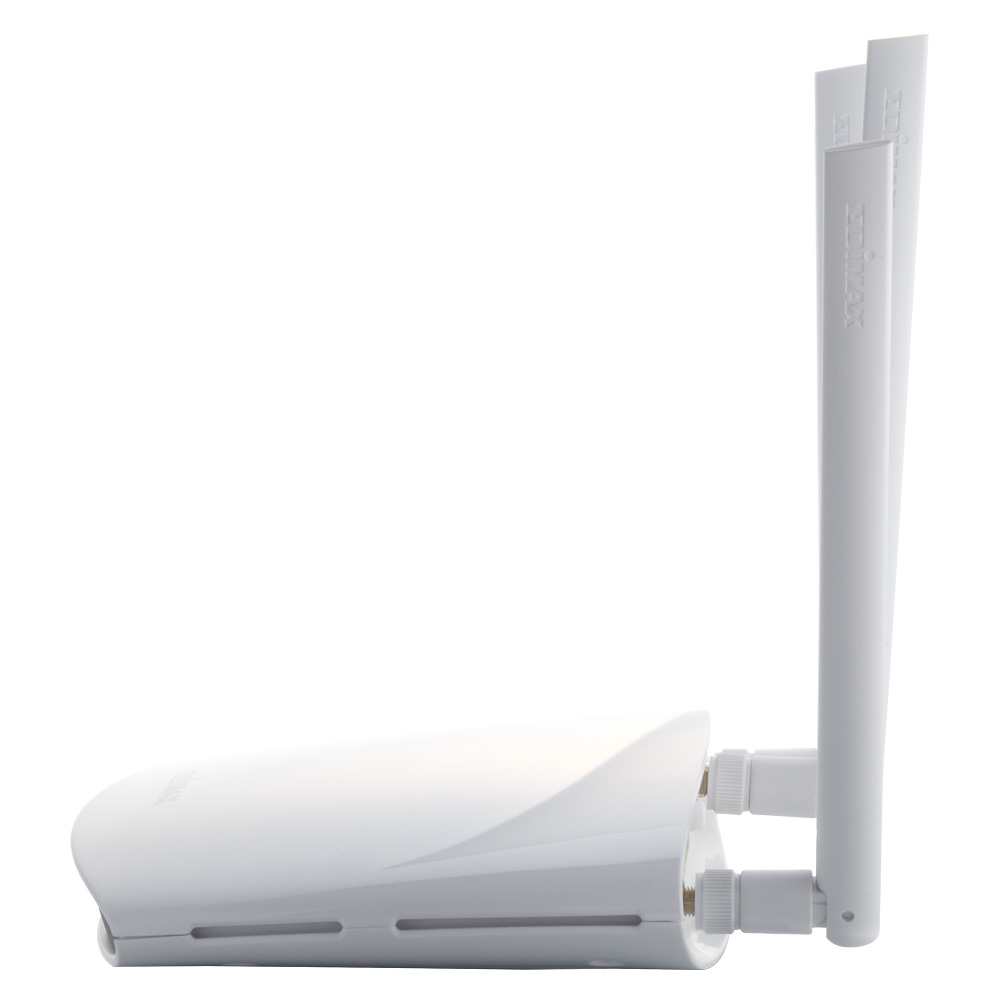

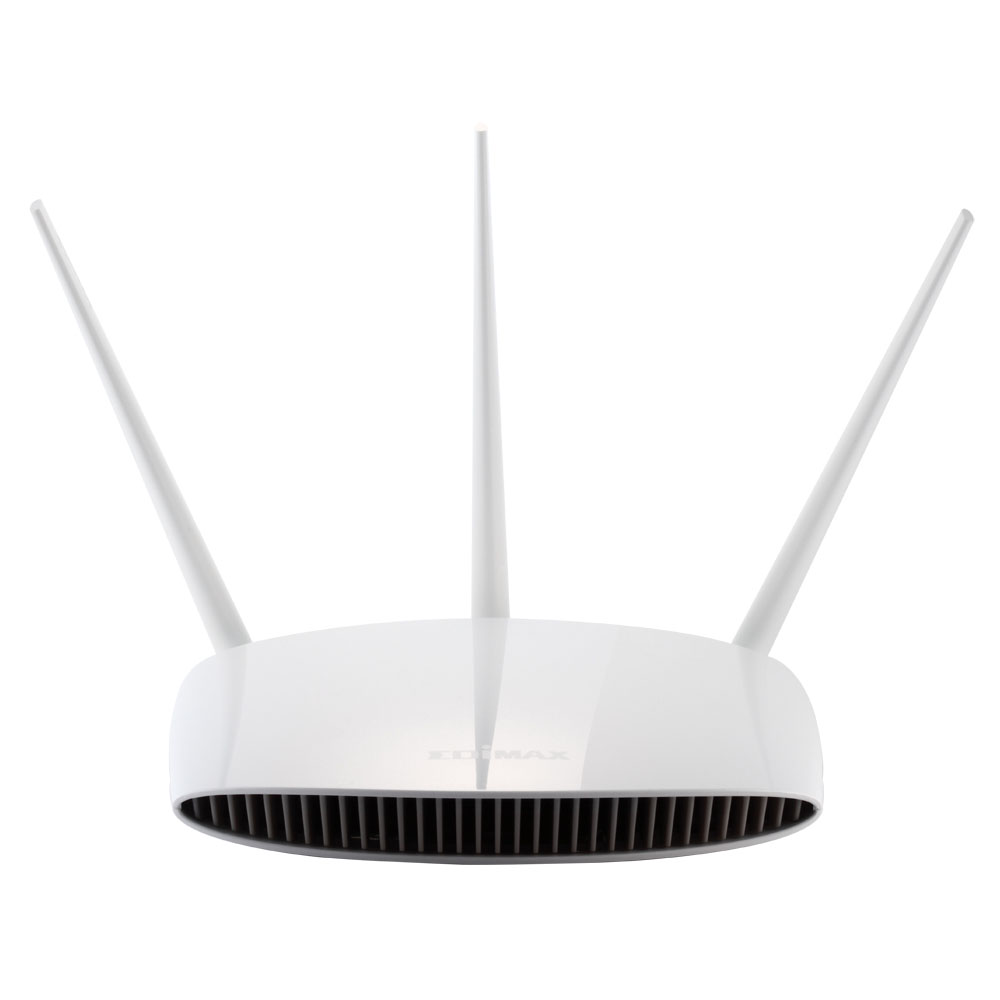

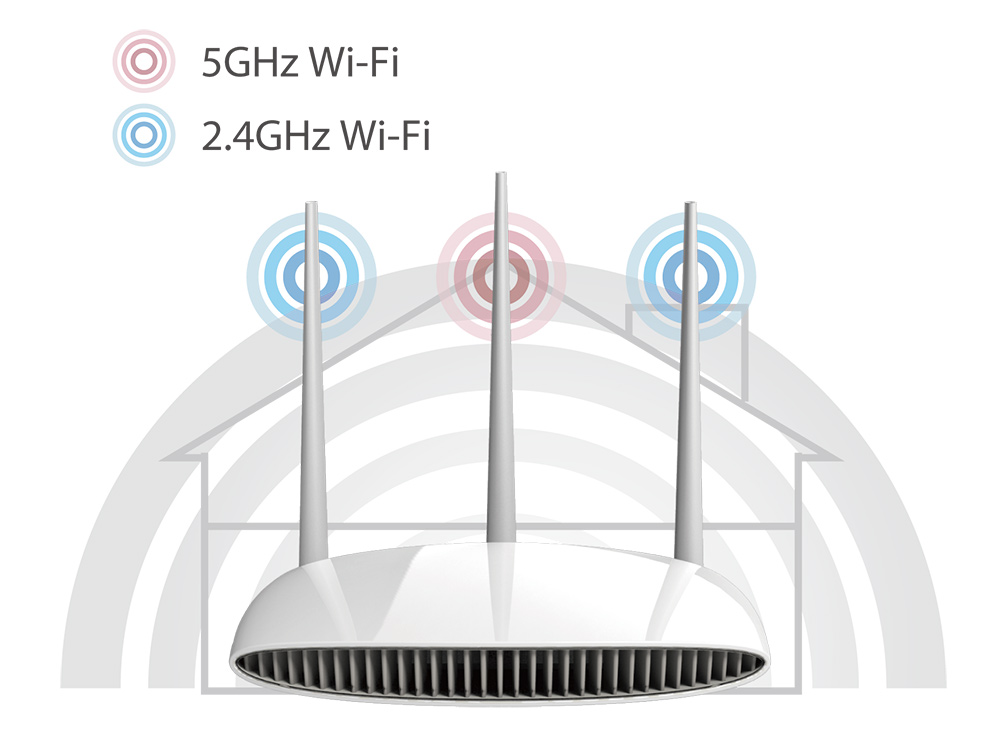

Three Antennas For Better Wi-Fi Performance

Employing three external detachable antennas, the EW-7208APC provides powerful 2.4GHz and 5GHz dual-band signal strength and enhances Wi-Fi range, providing signal penetration through walls and floors across your home or office.

  Edimax EW-7208APC AC750 Multi-Function Dual-Band Access Point / Range Extender, high gain antenna

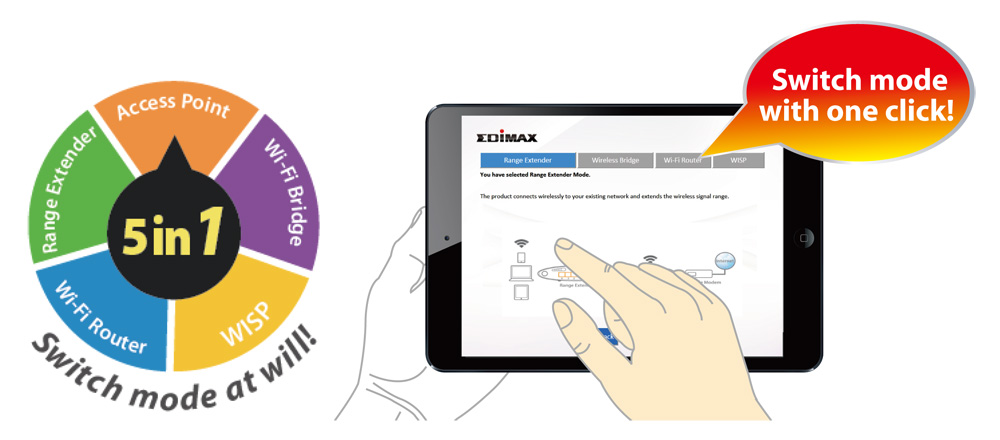

5-in-1, Access Point, Range Extender, Wireless Bridge, Wi-Fi Router and WISP

The EW-7208APC can work as an access point, range extender, wireless bridge, Wi-Fi router or WISP. Just configure the mode you need for your network environment using the smart iQ Setup wizard.

  Edimax EW-7208APC AC750 Multi-Function Dual-Band Access Point / Range Extender, 5-in-1 mode
Switch mode using the smart iQ setup wizard on any device with a web browser, no CD required.
*Mobile device setup requires iOS 4.0 or Android 4.0 and above.

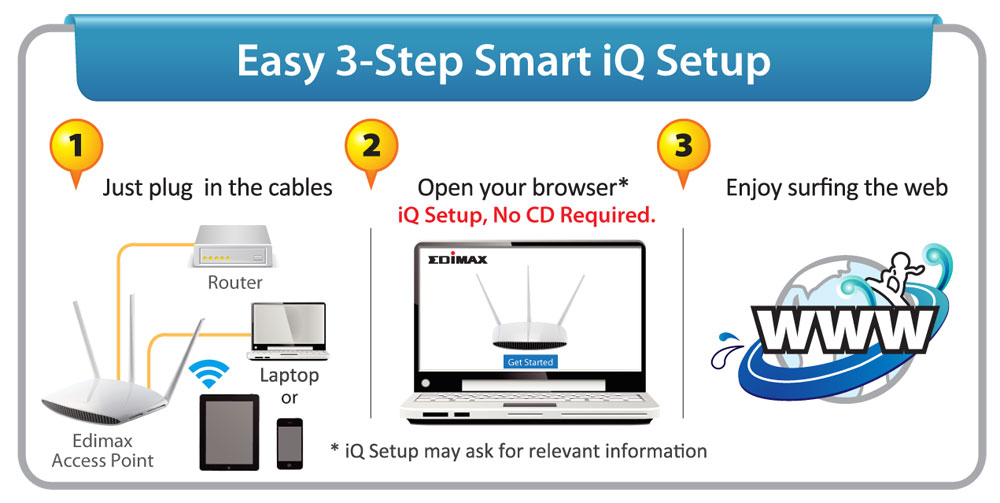

Smart iQ Setup

Features iQ Setup for smart, automatic and quick installation with no CD required.
  Edimax EW-7208APC AC750 Multi-Function Dual-Band Access Point / Range Extender, easy smart iQ setup

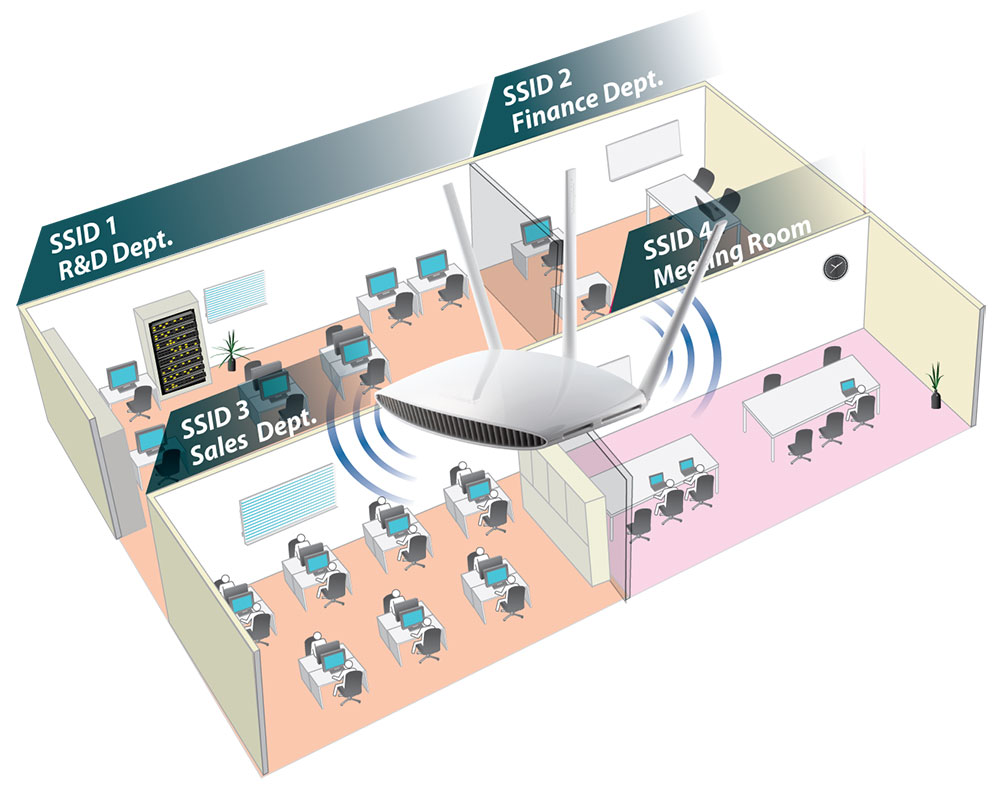

Multi-SSID & VLAN Support*

Multi-SSID enables users to configure up to eight separate SSIDs (2.4GHz x 4 and 5GHz x 4) in order to group and manage users according to your requirements. In addition, each SSID can be assigned a different VLAN ID, so users with multiple VLANs can manage the network access level of each SSID – ensuring security and protecting confidential or critical network resources.
*Access point mode only

  Edimax EW-7208APC AC750 Multi-Function Dual-Band Access Point / Range Extender, multiple SSIDs

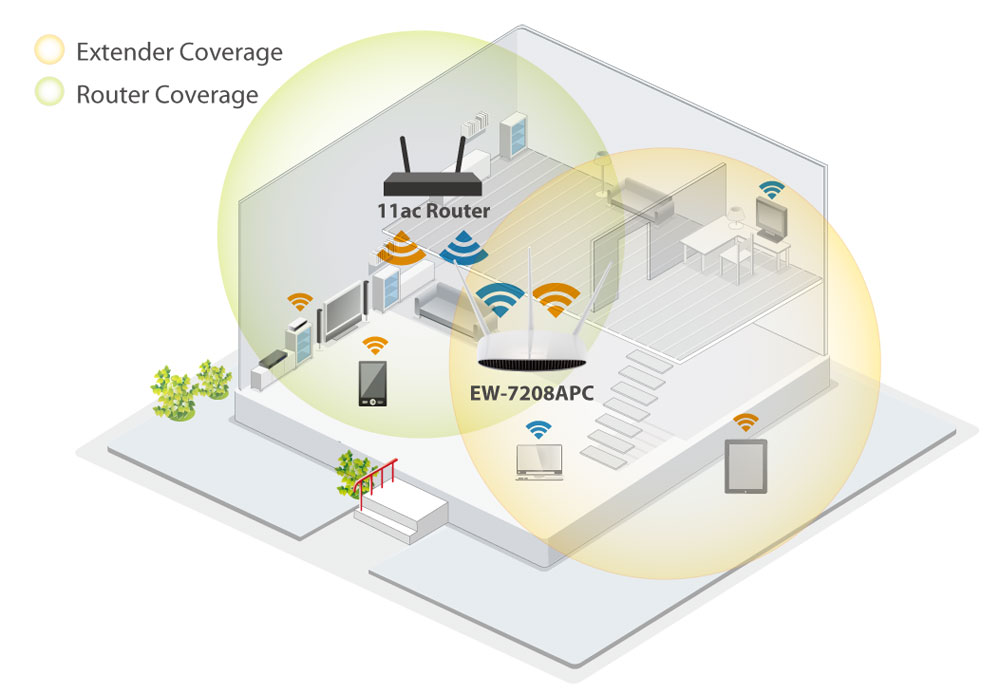

Eliminate Wi-Fi Dead Zones & Double Wi-Fi Coverage

Switch the EW-7208APC to range extender mode to extend Wi-Fi coverage to dead zones which your existing Wi-Fi signal can’t reach. Increase the signal coverage of your Wi-Fi network for better performance on your Wi-Fi devices.
*Range extender mode only

  Edimax EW-7208APC AC750 Multi-Function Dual-Band Access Point / Range Extender, eliminate Wi-Fi dead zone

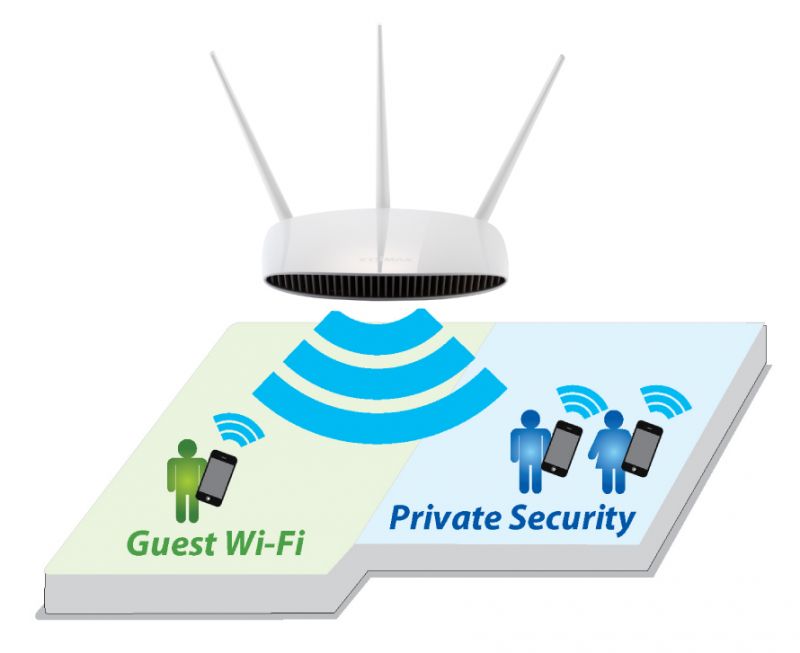

Guest Network*

Supports a guest network to provide connectivity while isolating guests from your primary network.
*Wi-Fi router mode only

Edimax EW-7208APC AC750 Multi-Function Dual-Band Access Point / Range Extender, guest network

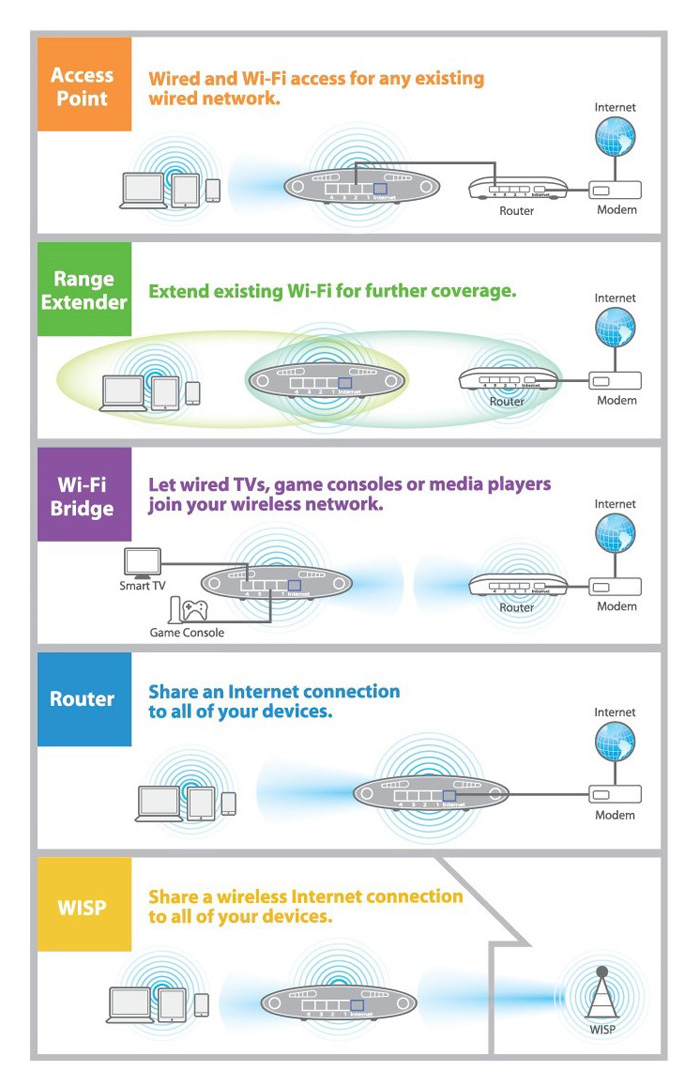

APPLICATION DIAGRAM

  Edimax EW-7208APC AC750 Multi-Function Dual-Band Access Point / Range Extender, 5-IN-1 application diagram


SPECIFICATIONS
Functions
  • Supports access point, range extender, wireless bridge, Wi-Fi router and WISP modes
  • Guest network
  • Up to 8 SSIDs (2.4GHz x 4 and 5GHz x 4) with VLAN support in AP mode
  • Wi-Fi access control
  • Wi-Fi schedule control
  • Fault tolerance firmware upgrade
Hardware Interface
  • 1 x RJ-45 10/100M WAN port
  • 4 x RJ-45 10/100M LAN port
  • LED indicators: power, Internet, 2.4GHz wireless, 5GHz Wireless
  • 2 x 2.4GHz detachable antennas and 1 x 5GHz detachable antenna
  • WPS/Reset button
  • Wireless on/off switch
Management
  • Multi-language user interface
  • Firmware upgradable
Installation
  • Smart iQ Setup, no CD required
  • Supports smartphone, tablet or laptop setup (iOS 4 or Android 4 and above are required for smartphone or tablet setup)
Output Power
  • 5GHz
    • 11a(54Mbps): 16±1.5dBm
    • 11n(20MHz, MCS7): 16±1.5dBm
    • 11n(40MHz, MCS7): 16±1.5dBm
    • 11ac(80MHz, MCS9): 14±1.5dBm
  • 2.4GHz
    • 11b (11Mbps): 18±1.5dBm
    • 11g (54Mbps): 17±1.5dBm
    • 11n (20MHz, MCS7): 16±1.5dBm
    • 11n (40MHz, MCS7): 16±1.5dBm
Receive Sensitivity
  • 5GHz
    • 11a(54Mbps): ‐69±2dBm
    • 11n(20MHz, MCS7): ‐68±2dBm
    • 11n(40MHz, MCS7): ‐64±2dBm
    • 11ac(80MHz, MCS9): -57±2dBm
  • 2.4GHz
    • 11b(11Mbps): ‐83±2dBm
    • 11g (54Mbps): ‐69±2dBm
    • 11n(20MHz, MCS7): ‐67±2dBm
    • 11n(40MHz, MCS7): ‐64±2dBm
Security
  • Supports WPS (Wi-Fi Protected Setup)
  • 64/128-bit WEP encryption, WPA and WPA2 security
  • QoS for critical operations
  • SPI anti-DoS firewall
Memory
  • 4MB NOR Flash
  • 64MB SDRAM
Humidity & Temperature
  • Humidity: 10-90% (non-condensing)
  • Temperature: 0-40°C
Power Adapter
  • DC 5V, 1.5A
Dimensions
  • 190.2mm x 141mm x 42mm
Weight
  • 260g
Certification
  • FCC, CE




PACKAGE CONTENT

  • Access Point (main body, 1 pcs)
  • Quick Installation Guide (1 pcs)
  • One CD-ROM (Including the Setup Wizard, Multi-languages Quick Installation Guide and User Manual)
  • 5V DC power adapter (1 pcs)
  • Ethernet Cable

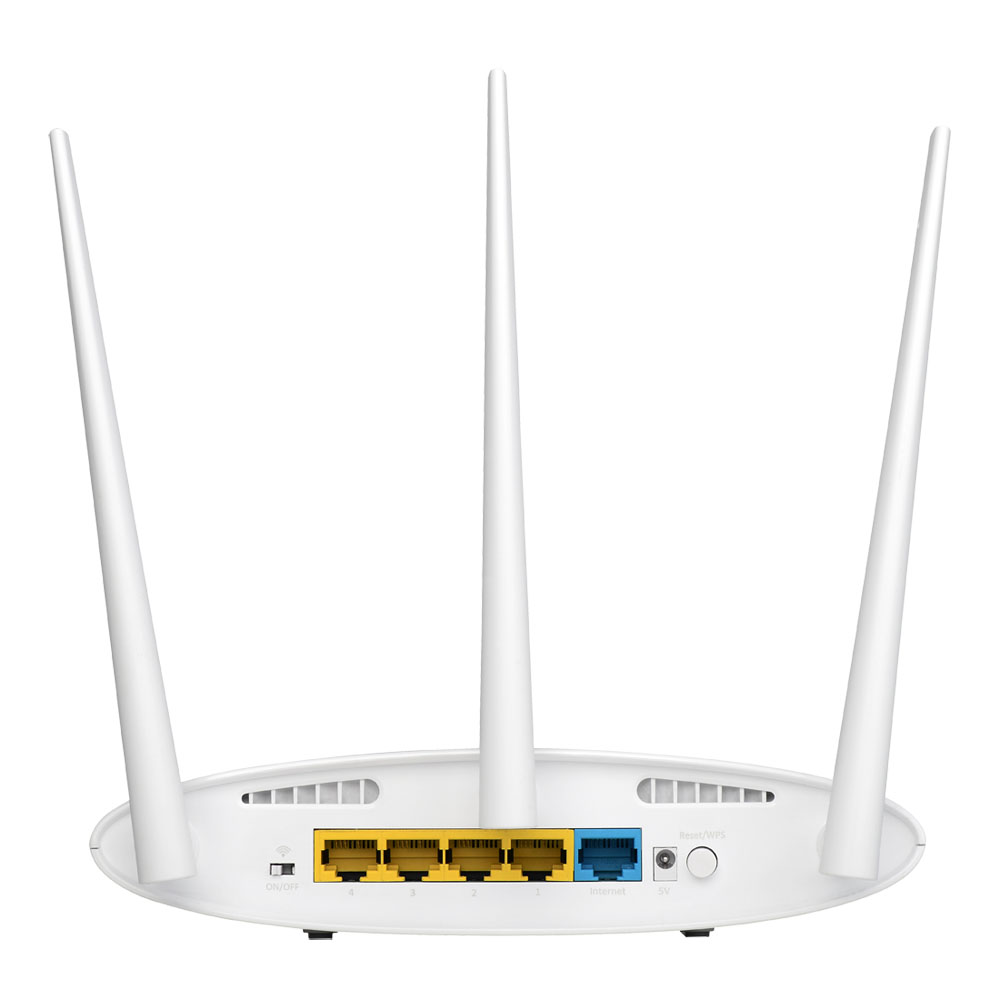

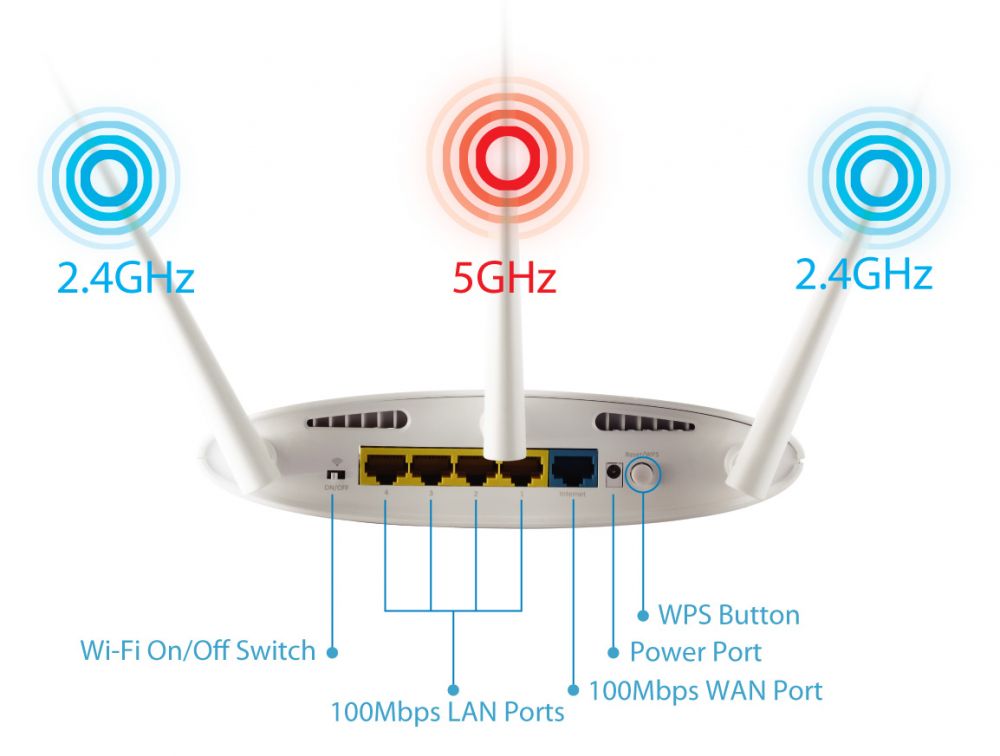

HARDWARE INTERFACE

Edimax EW-7208APC AC750 Multi-Function Concurrent Access Point / Range Extender

*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
