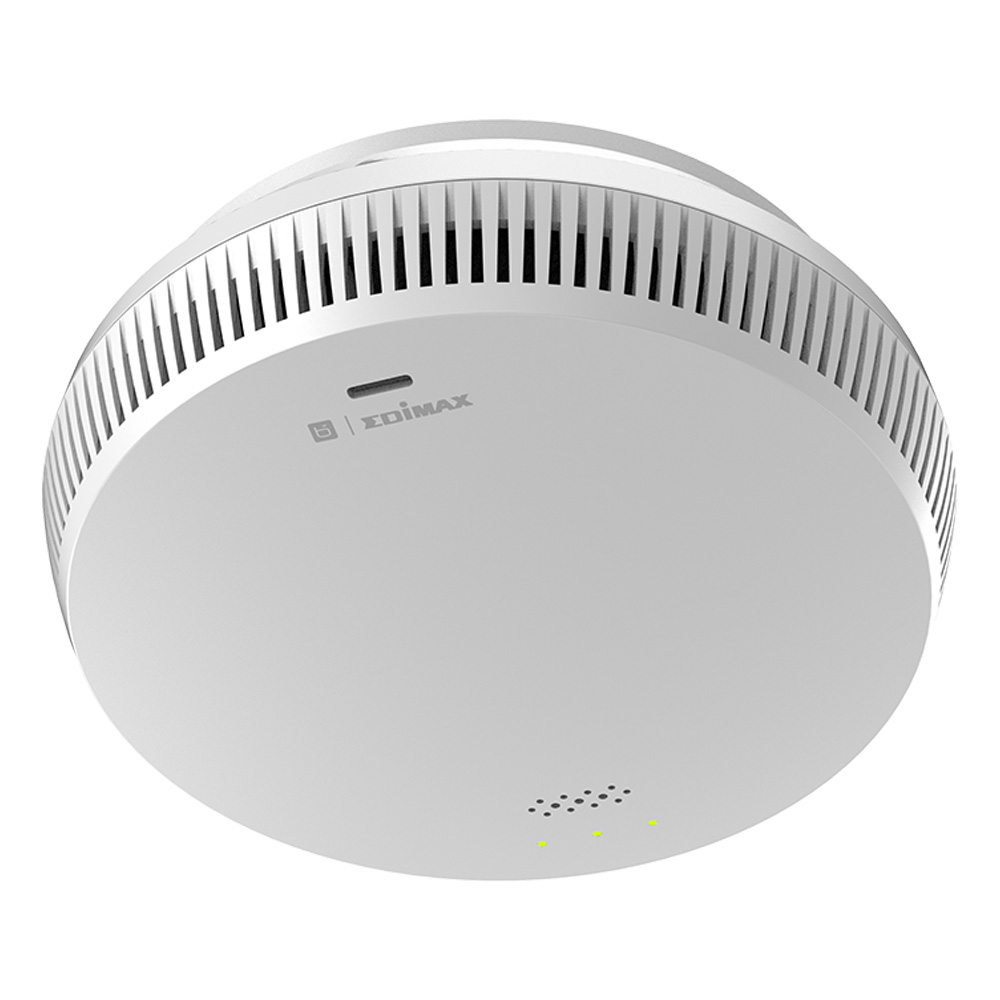

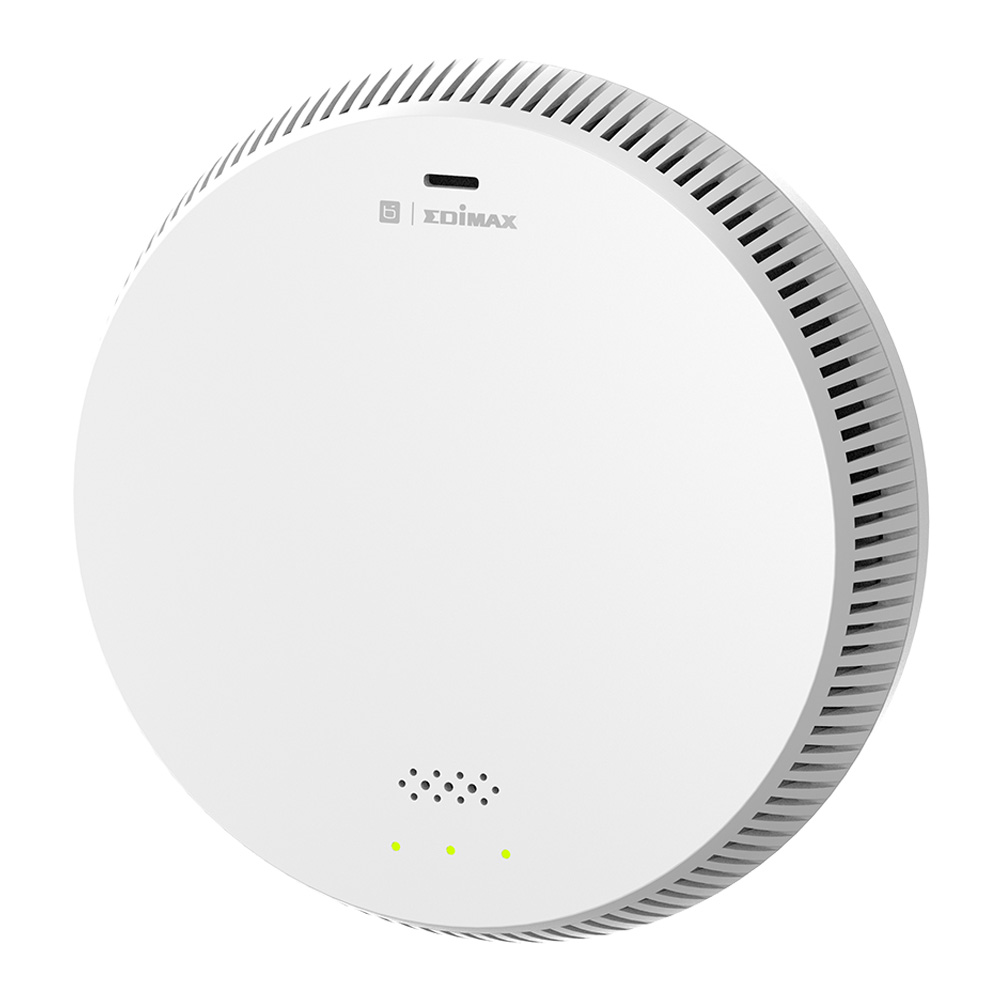

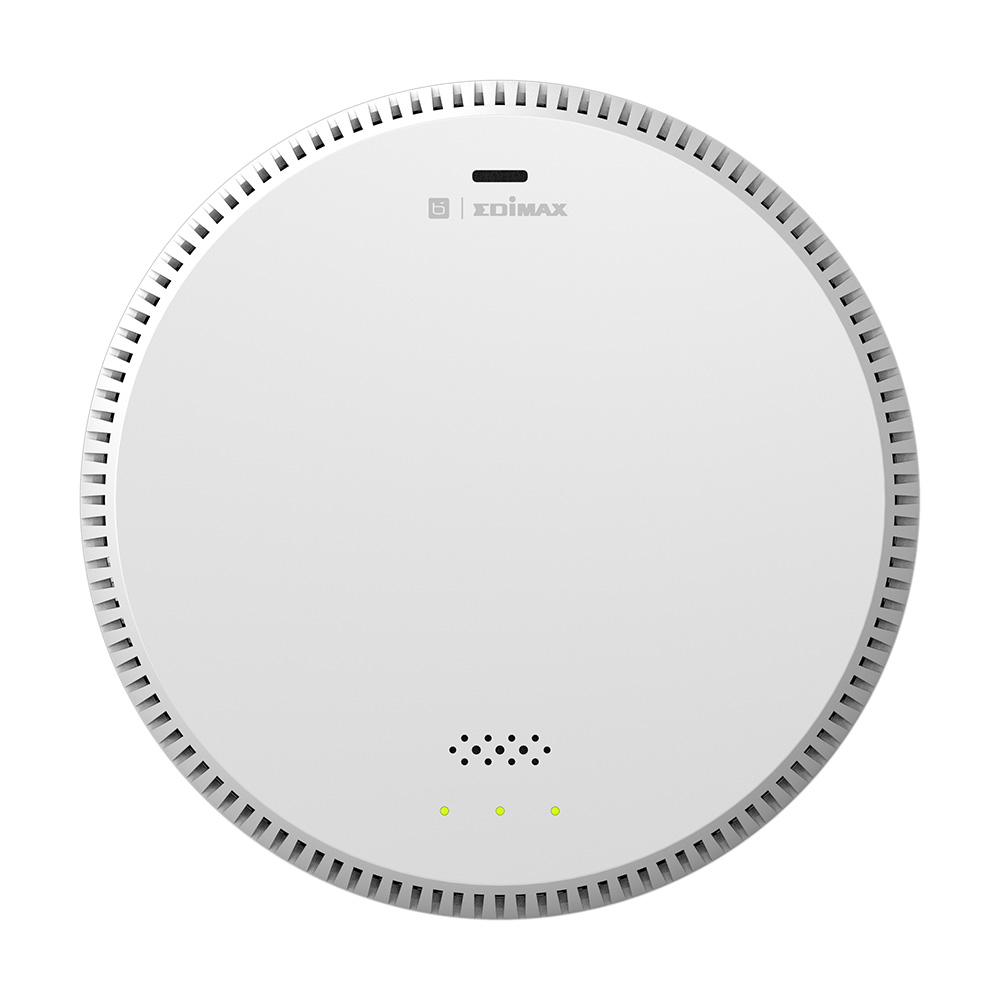

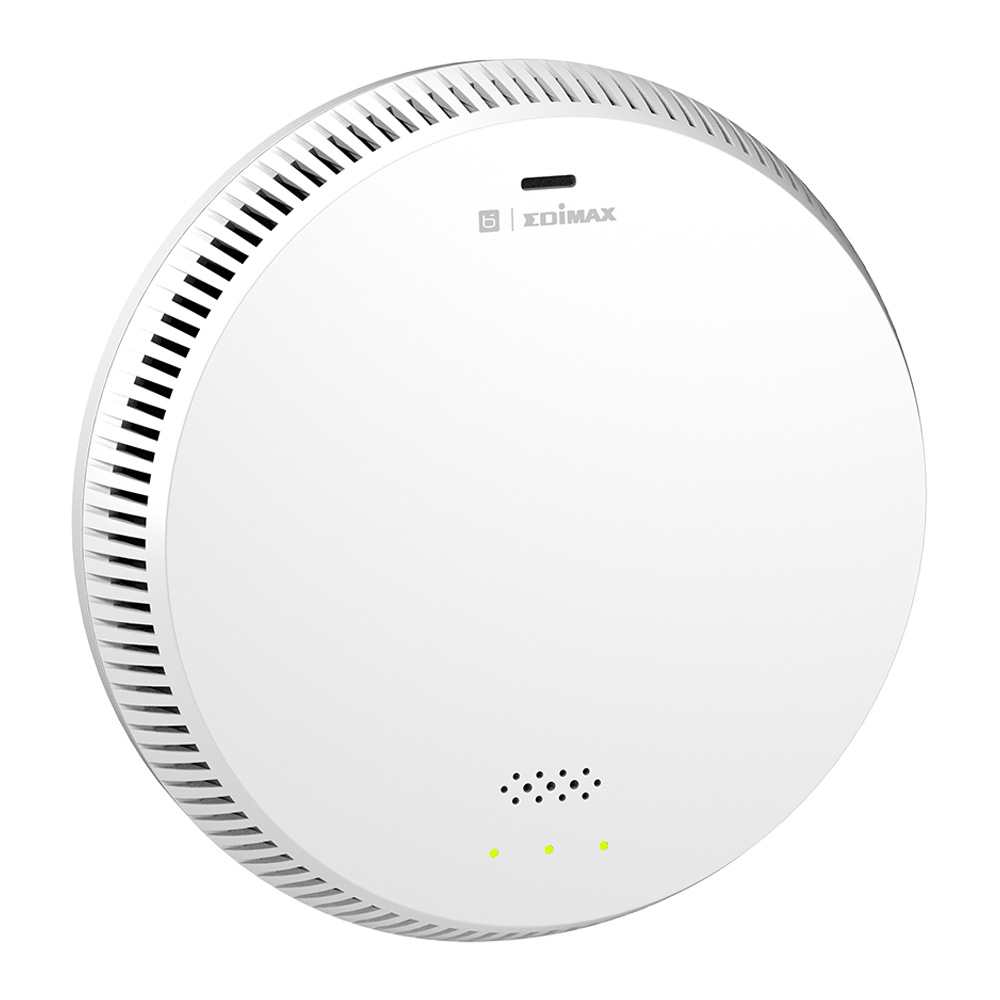

All-in-One Multi-Sensor Indoor Air Quality Detector with PM2.5, PM10, CO, C02, NO2, TVOC, THC, Vape, AQI, Temperature, and Humidity Sensors

AI-2005BE

  • Real-time Sensor Data: Obtain real-time Particulate Matter (PM2.5, PM10), CO,C02, NO2, TVOC, THC, Vape, AQI, temperature, and humidity data
  • Historical Data Tracking: Hourly, daily, weekly, monthly data of each sensor
  • Push Notification Per Sensor: Set your warning mode for a specific sensor to track the change of different air pollutants
  • 2-Way Audio & Speaker: Allows the device to send an alarm on-site and enables remote communication by the administrator with the person on-site to make necessary adjustments for improving air quality
  • Remote Control and Improvement: Improve indoor air quality through the mobile app and remote management of a connected air circulation/ ventilation system
  • Multiple Connectivity Options: Supports RS485/Dry contact connections in order to meet project requirement and “time to market” constraints
  • Easy Integration: Offers a compelling solution for SI developers by creating custom management systems via easy API integration (Optional)

Get Gosensor app from:
Share


SPECIFICATIONS


HARDWARE
Port 1 x RJ-45 10/100Base-T PoE Port
Audio 2 x MEMS Microphones for 2-way Audio via App
Speaker 1 x Speaker for Sound Warning (Alarm Condition 100dB (10cm), Pre-recorded file) and 2-way Audio via App
SD Card Slot 1 x SD Card Slot for Data Backup, Max. Support 8GB Capacity

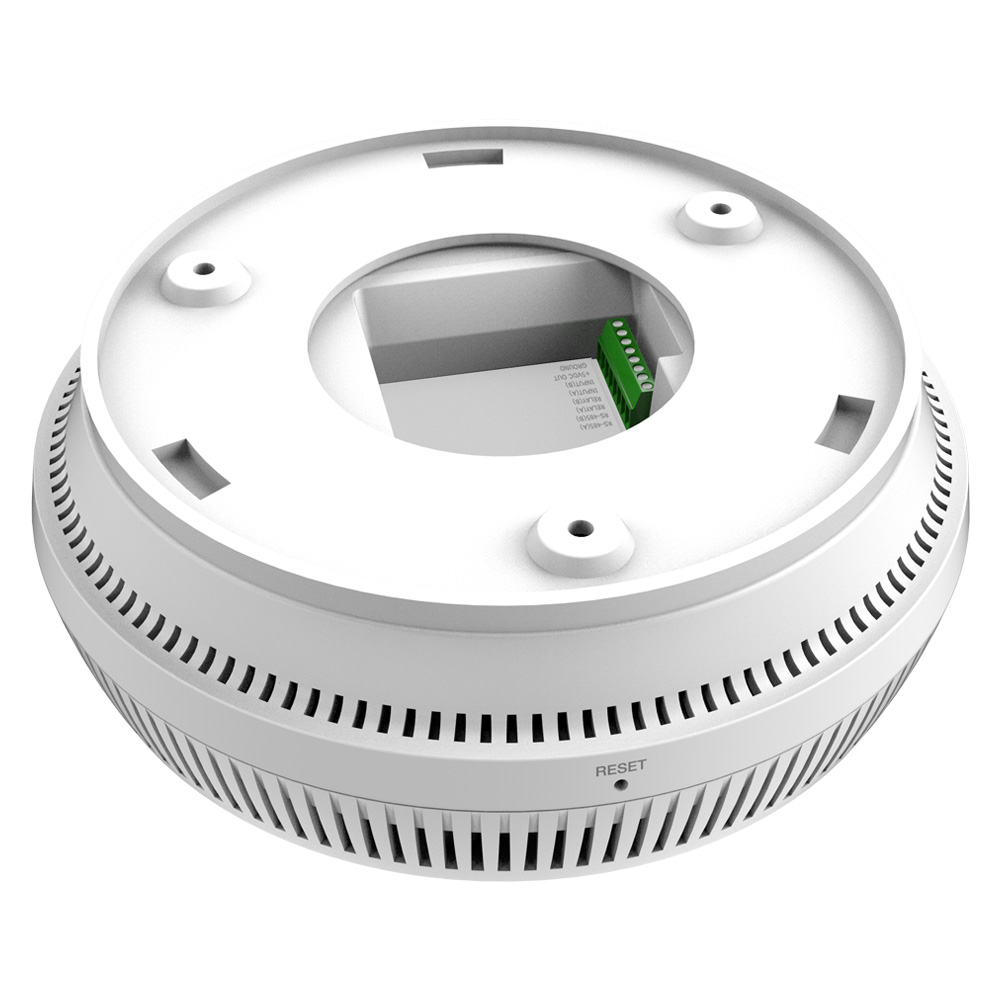

Terminal Block
  • 1 Pair x RS-485 (Support Modbus Command)
  • 1 Pair x Relay Output (Normal Open, Load for Max. 48V DC 1A)
  • ​1 Pair x Digital Input
  • 1 x 5VDC Out
  • 1 x Ground
Button Reset Button
LED Indicators
  • Power/System Status
  • Air Quality Status
  • ​Network Status
Power Supply PoE In (802.3af Class 3)
Mounting Surface / Ceiling-Mount (Bracket Included)
Dimensions 151mm(Ø) x 52mm(H) with Bracket
Weight 328g
SENSITIVITY
PM2.5 0 - 1000 μg/m3, min. 0.1μm,
>100 μg/m3, ± 15 %,
<100 μg/m3, ± 15 μg/m3*(1)
PM10 0 - 1000 μg/m3, min. 0.1μm*(1)
CO2 0 - 5,000 ppm, ± 40ppm or +/-3% of Reading
CO 0 - 1,500 ppm, ± 20ppm or +/-15% of Reading*(2)
TVOC (NO2) Index 0 - 500*(3)
THC Index 0 - 500
Vape Index 0 - 500
Air Quality Index (AQI) 0 - 500
Temperature 0 - 80°C ± 1 °C
Humidity 0 - 100% RH, ± 2% RH
MAMAGEMENT
Mobile App Gosensor App *(4)
Cloud Dashboard Acelink Go (Web-based) *(4)
OTHERS
Environmental Condition Operating Temperature: 0 - 50°C (32°F - 122°F)
Operating Humidity: 0 - 90% RH (Non-condensing)
Certification RCM

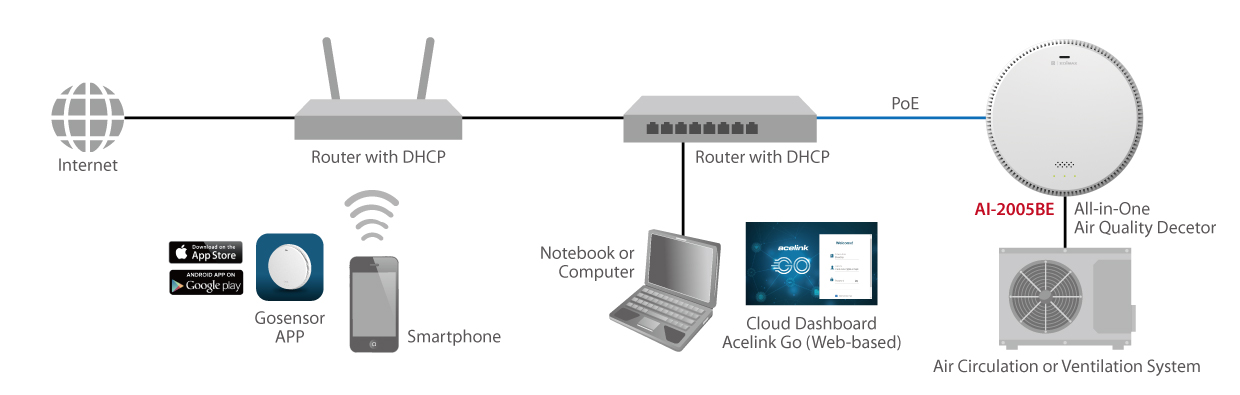

APPLICATION DIAGRAM
EDIMAX AI-2005BE All-in-One Multi-Sensor Indoor Air Quality Detector


Note:

(1) Particulate Matter sensor  has auto cleaning function. The default cleaning interval is set to 168 hours. When executing this function, the fan speed will be turned to maximum for 10 sec.

(2) The accuracy is are -15% to 15% of reading, or -10 to 10PPM at low concentration environment.

(3) TVOC can reflect the actual concentration level, but the accuracy is for reference only. The consistency of TVOC readings has the following limitations: The devices with SGP40/SGP41 should be turned on at the same places for at least 1.5 hours. That could improve the consistency. If the devices are not turned on at the same places and same time, you need to wait for at least 24 hours to improve the consistency.

(4) The temperature and humidity accuracy is based on test results under laboratory conditions. Actual results may vary due to heat source interference from the mechanism and system, as well as different the heat dissipation conditions in various environments.

(5) Please contact your distributor or SI, where you purchased the device, to claim the account “Email” and “Password”.

*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
