Transmit Network Data via Existing Electrical Wires
The Edimax HP-5101AC can turn the existing electrical wires in your home or office into a high-speed network. Complicated, disruptive and unsightly cabling is no longer necessary - if your home or office doesn’t have an existing Ethernet cable infrastructure, the HP-5101AC enables you to create a network environment easily and cost-effectively.

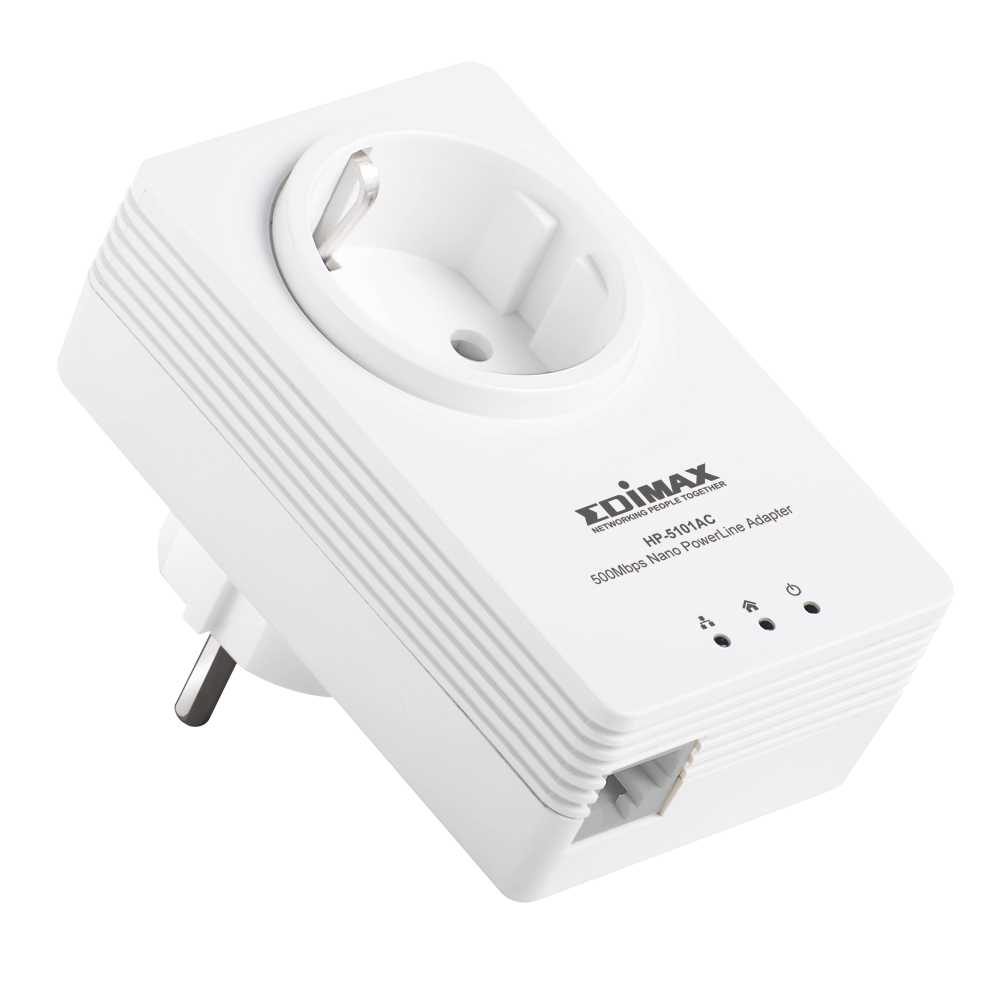

Integrated Power Socket with Noise Filter
With the Edimax HP-5101AC, no electrical outlet goes to waste. It is built with an integrated power socket, which you can use with any electrical device. So even when the HP-5101AC is plugged into a socket, you can still plug another electrical device into the HP-5101AC and have your usual socket capacity. The in-built noise filter also ensures that you do not experience a sudden drop of network speed when a high power consuming electrical device is being used.

500Mbps HomePlug AV Standard & IGMP Support
The Edimax HP-5101AC not only complies with the HomePlug AV standard but also supports IGMP managed multicast streams. The HP-5101AC can transmit network data over existing electrical wires at speeds of up to 500Mbps. It is also backward compatible with the 200Mbps HomePlug AV standard and has a transmission range of up to 300 meters. IGMP can be used for online gaming and video streaming applications, and allows for more efficient use of network resources. With the HP-5101AC, you can transfer high-definition video and digital audio quickly and easily.

Compatibile with HomePlug 1.0 & 1.0 Turbo Devices
The HP-5101AC is designed to ensure efficient coexistence with HomePlug 1.0 and 1.0 Turbo devices, providing guaranteed QoS to all devices present in a heterogeneous powerline network. In such an architecture, the HP-5101AC and other HomePlug 1.0 stations share the CSMA/CA allocations, thus providing fair access to HomePlug 1.0 stations based on traffic priority.

128-Bit AES Encryption
With built-in compliance with the 128-bit AES encryption standard, the Edimax HP-5101AC provides superior powerline network security.

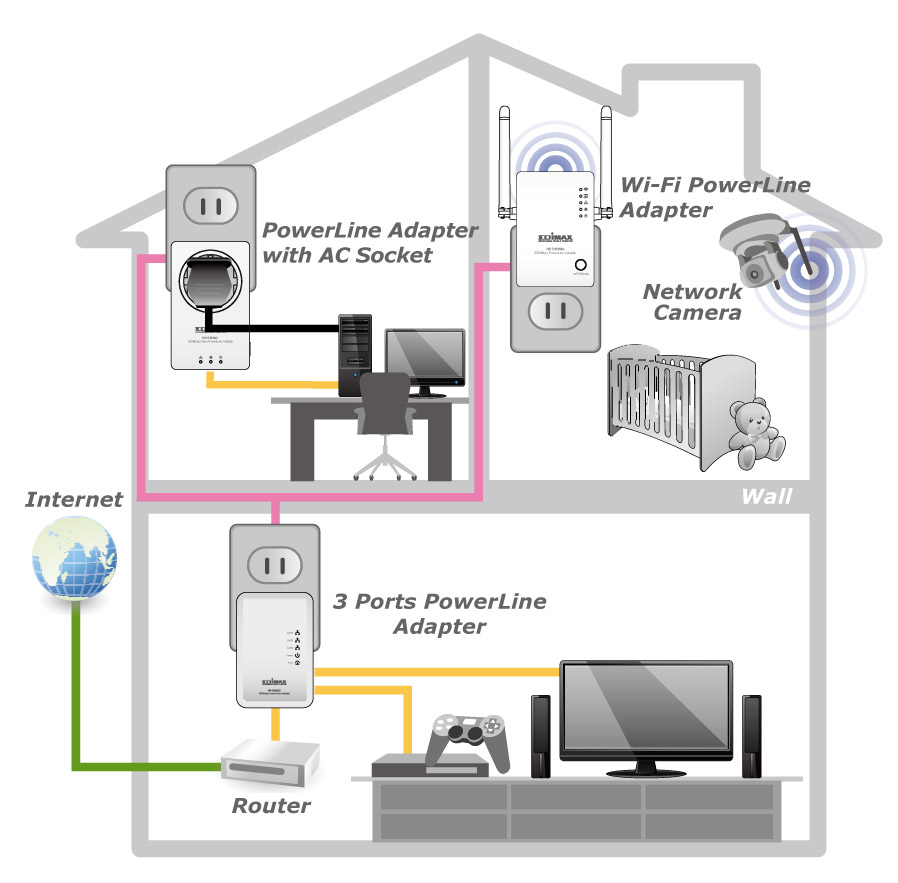

APPLICATION DIAGRAM


• Plug an HP-5101AC to a power outlet and connect it to a broadband router.
• Plug another HP-5101AC to a power outlet and connect it to a computer's Ethernet port to establish a powerline connection.

​*Powerline adapters must be deployed in sets of two or more.

500/200Mbps is the maximum theoretical communication speed at the physical layer via electric power lines based on the IEEE 1901 standard.

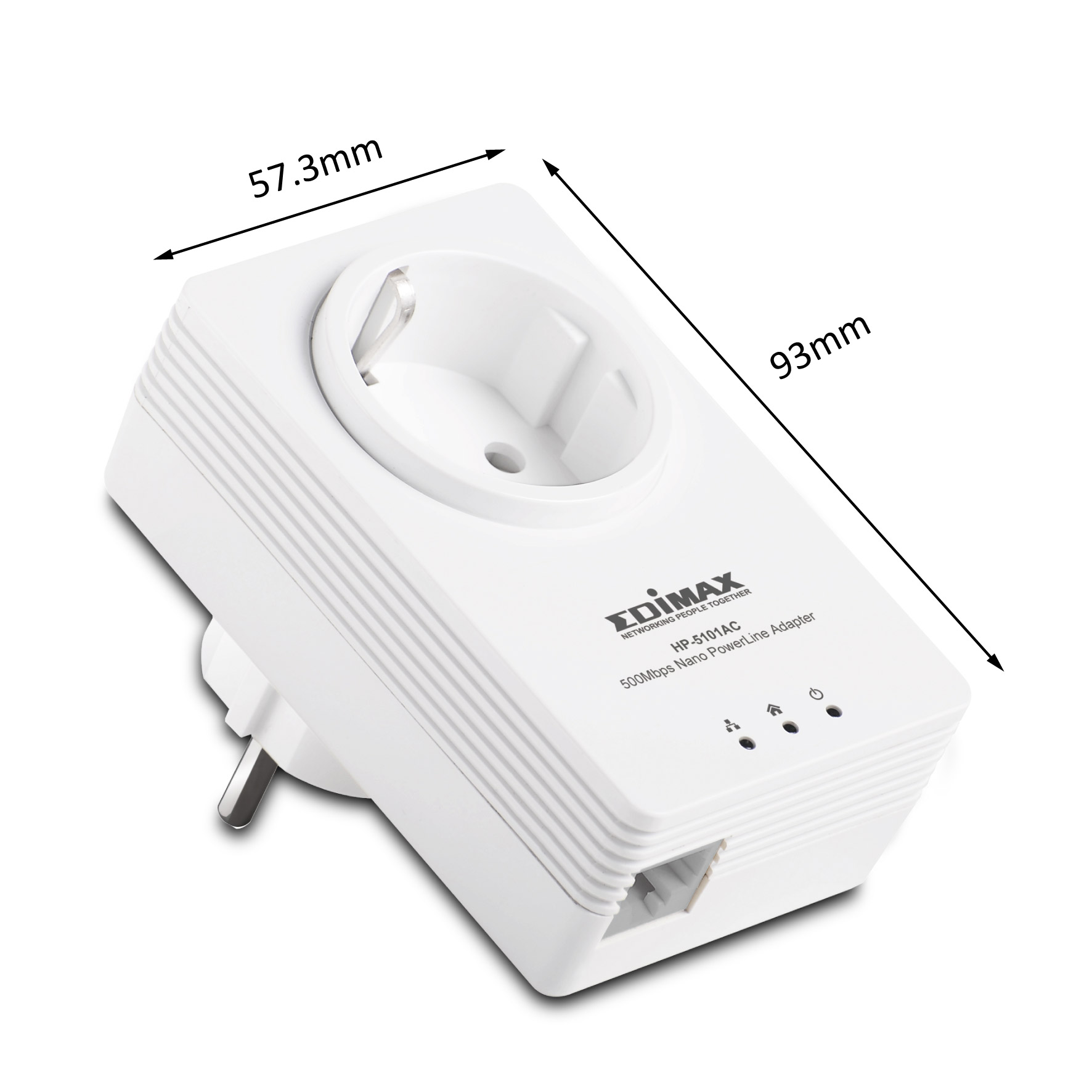

NANO SIZE DESIGN


• The HP-5101AC fits perfectly into existing wall sockets
• The HP-5101AC ‘s nano size, low profile design is slim and compact, meaning it only occupies a single power socket.

VIDEO

 HP-5101ACK PowerLine Adapter Kit with Integrated Power Socket (2 pcs of HP-5101AC)

PACKAGE CONTENTS
​

• Powerline adapter x 1
• Quick installation guide x 1
• CD with setup wizard, user manual & multi-language QIG x 1
• Ethernet cable x 1
